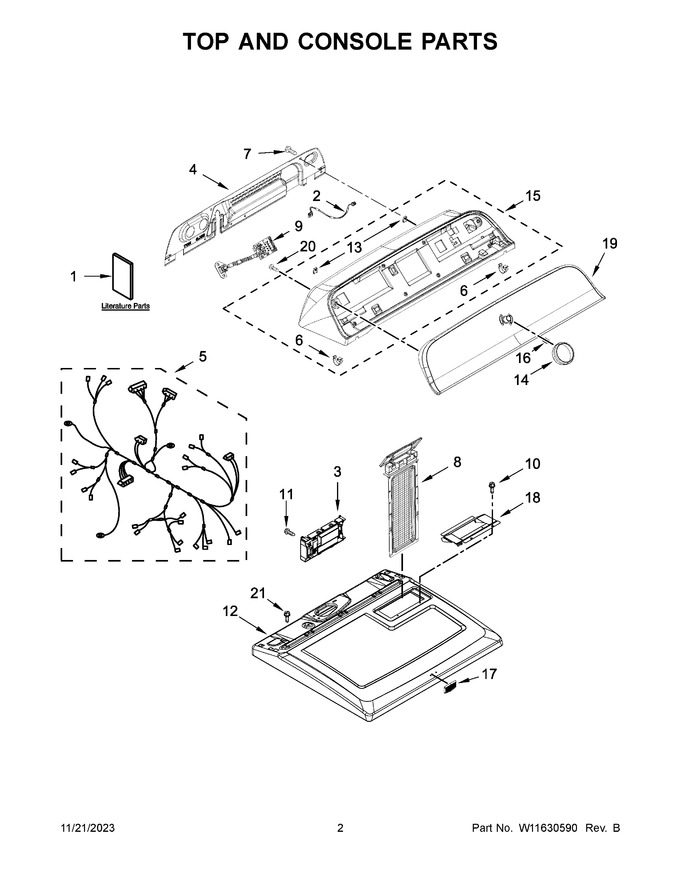

SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555817		Owners Manual		Appelez-nous	-
2	W11551859		Hmi Harness				$ 27.74
3	W11728026		Appliance Control Unit (acu)   (Replaces: W11578596)			Immediately	$ 298.80
4	W10775189		Panel, Rear				$ 351.12
5	W11591407		Harness, Main   (Replaces: W11448300)			Immediately	$ 227.45
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.62
8	W11778254		Lint Screen (white)   (Replaces: W11538108)			Immediately	$ 49.17
9	W11627521		Encoder, Mega Assembly   (Replaces: W11557403)			Immediately	$ 291.07
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
14	W11675852		Knob, Large   (Replaces: W11328381)			Immediately	$ 33.32
15	W11406485		Assembly, Console (white)			Immediately	$ 336.84
16	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
17	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
18	W10662472		Collar, Lint Chute				$ 70.08
19	W11565155		Assembly, Fascia (white)			Immediately	$ 178.08
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
12A	W11633116		Top (black)   (Replaces: W11564863)				$ 258.19
15A	W11564427		Assembly, Console (gray)				$ 196.43
19A	W11564422		Assembly, Fascia (gray)			Immediately	$ 178.33
1A	W11565129		Tech Sheet		Appelez-nous	-
1B	W11565099		Quick Start Guide		Appelez-nous	-
8A	W11633115		Lint Screen (gray)   (Replaces: W11564882)				$ 72.21

    View Diagram in Separate Window       Print Part List
