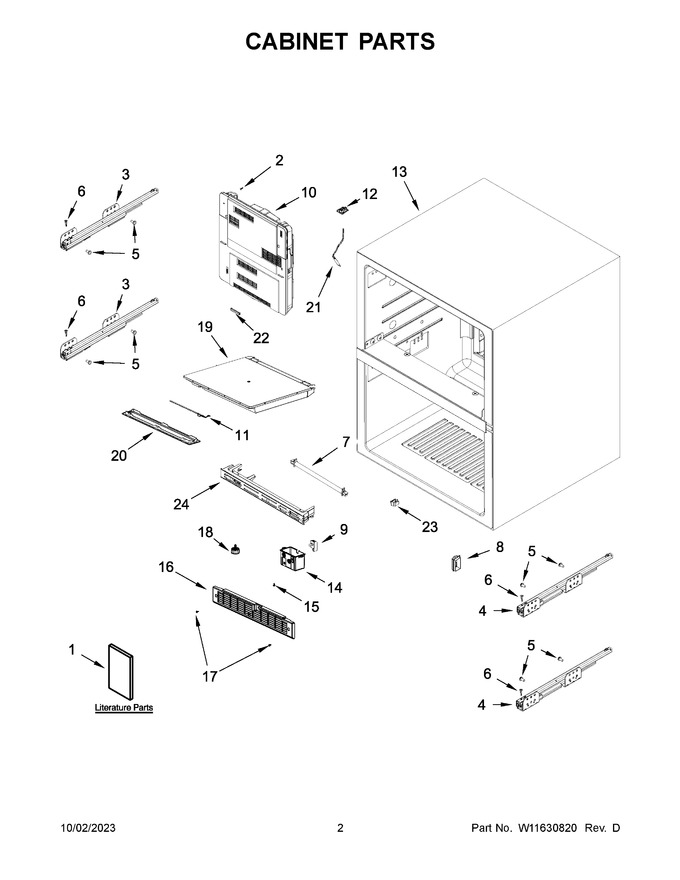

01 - Cover Sheet


02 - Cabinet Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11467322		Energy Guide		Appelez-nous	-
2	W10774183		Screw		Appelez-nous	-
3	W11599889		Rail Assembly, Left Hand				$ 200.47
4	W11599890		Rail Assembly, Right Hand				$ 201.48
5	W10621524		Screw				$ 16.10
6	W10204809		Screw		Appelez-nous	-
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11568783		Switch, Case				$ 20.66
9	W11266082		Switch, Door   (Replaces: W11265587)			Immediately	$ 36.73
10	W11568769		Cover Assembly, Evaporator   (Replaces: W11630433)		Appelez-nous	-
11	W11579582		Led   (Replaces: W11568950)				$ 110.67
12	W11568787		Connector, Cover		Appelez-nous	-
13	ARI89959A0406B9B609EB9764890B107614		Cabinet (not A Servicable Part)		Appelez-nous	-
14	W11568794		Assembly, Switch Box				$ 173.50
15	W11371097		Screw		Appelez-nous	-
16	W11239541		Grille			Immediately	$ 71.96
17	W11675284		Screw   (Replaces: W11371095)				$ 14.35
18	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
19	W11568948		Assembly, Separator		Appelez-nous	-
20	W11312450		Cover, Led		Appelez-nous	-
21	W11359415		Fuse, Temperature				$ 98.35
22	W11579509		Cover Piece, Evaporator   (Replaces: W11568776)		Appelez-nous	-
23	W11579510		Switch, Door   (Replaces: W11568786)		Appelez-nous	-
24	W11579511		Assembly, Trim   (Replaces: W11568792)				$ 146.82
1A	W10772894		Tech Sheet		Appelez-nous	-
1B	W11357308		Use And Care Guide		Appelez-nous	-
