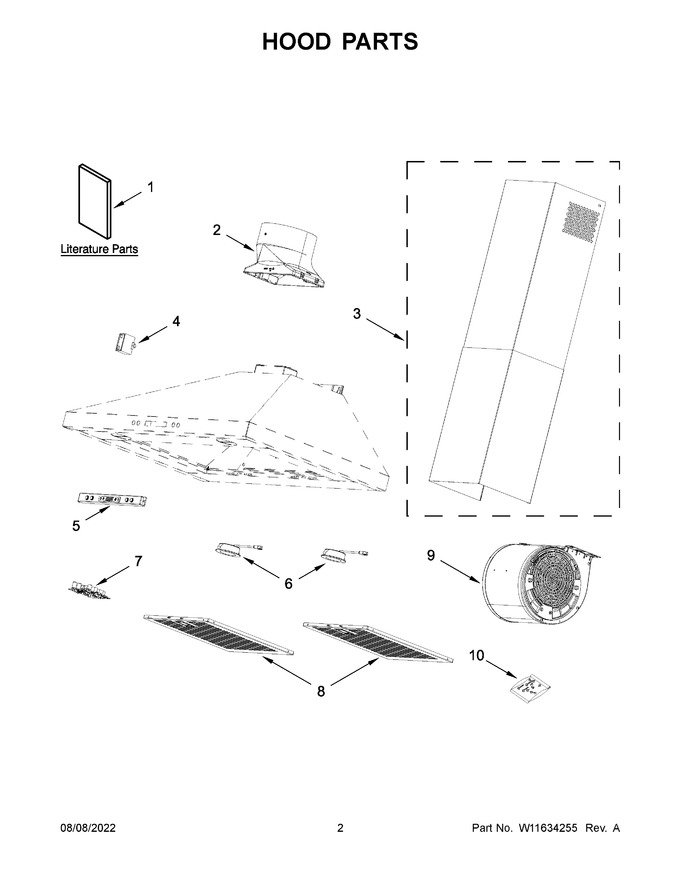

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549256 | Owner's Manual |
|
- | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 3 | W11630822 | Chimney, Upper And Lower (stainless Models) (Replaces: W11630762) |
|
- | |||||
| 4 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 5 | W11630610 | Control, Electronic |
|
- | |||||
| 6 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 7 | W11613025 | Board, Power (Replaces: W11612969) |
|
$ 332.58 | |||||
| 8 | W11630810 | Filter, Grease (Replaces: W11630609) |
|
$ 206.64 | |||||
| 9 | W11351717 | Motor, Blower (Replaces: W11351634) |
|
Immediately | $ 359.06 | ||||
| 10 | W11630611 | Hardware, Installation |
|
- | |||||
| 3A | W11240046 | Chimney, Upper And Lower (black Stainless Models) (Replaces: W11239984) |
|
$ 423.66 |
