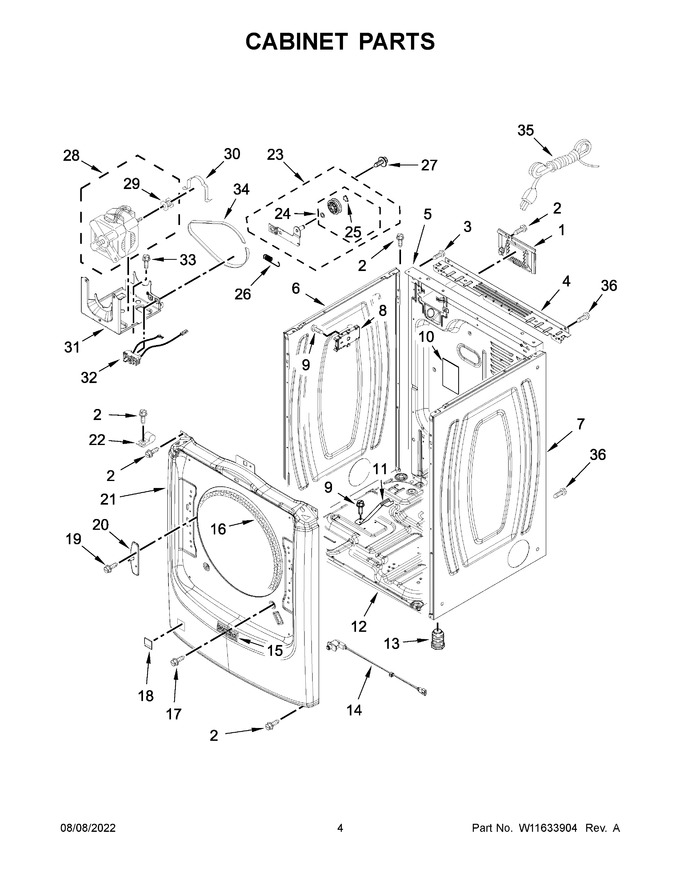

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 4 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 5 | W10487430 | Panel, Rear |
|
Immediately | $ 321.41 | ||||
| 6 | W11315732 | Panel, Side (black) (Replaces: W11194423) |
|
Immediately | $ 288.89 | ||||
| 7 | W11328722 | Panel, Side (right) (black) (Replaces: W11194424) |
|
- | |||||
| 8 | W11780102 | Appliance Control Unit (acu) (Replaces: W11529148) |
|
Immediately | $ 266.13 | ||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 10 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 11 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 14 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 29.94 | ||||
| 15 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 16 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 17 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 18 | W11564884 | Plug, Front Panel (black) |
|
- | |||||
| 19 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 20 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 39.47 | |||||
| 21 | W11636631 | Panel, Front (black) (Replaces: W11590899) |
|
$ 250.63 | |||||
| 22 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 23 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 24 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 25 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 27 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 28 | W11511154 | Assembly, Motor (Replaces: W11322192) |
|
Immediately | $ 254.27 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 45.92 | ||||
| 30 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 31 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 85.36 | ||||
| 32 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 49.47 | |||||
| 33 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 34 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 35 | W11628810 | Cord, Power (Replaces: W11308561) |
|
$ 91.71 | |||||
| 36 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 80.96 |
