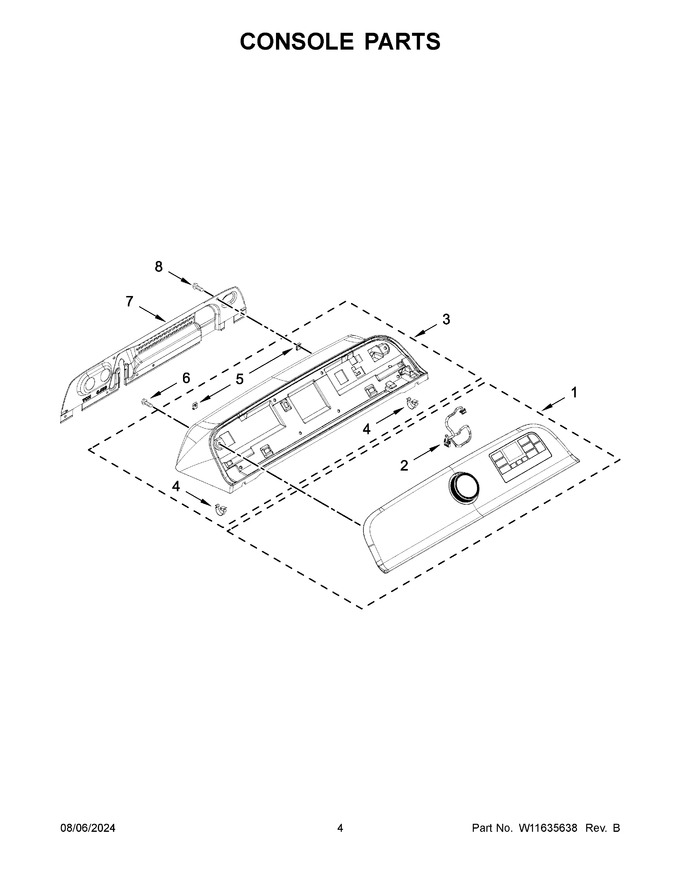

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11793906 | Assembly, Fascia (Replaces: W11130428) |
|
Immediately | $ 416.37 | ||||
| 2 | W11596129 | Harness, Ui (Replaces: W11232465) |
|
Immediately | $ 62.09 | ||||
| 3 | W11569437 | Assembly, Console (white) (Replaces: W11447379) |
|
Immediately | $ 141.42 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 5 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 7 | W11129559 | Panel, Console Rear |
|
$ 263.36 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 |
