01 - Cover Sheet

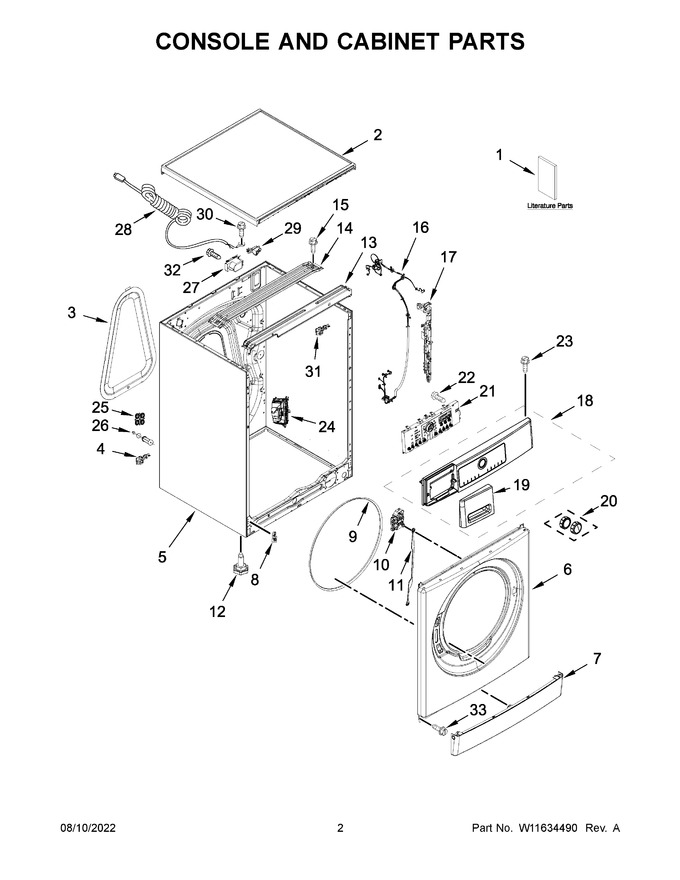

02 - Console And Cabinet Parts
03 - Door Parts
04 - Pump Parts
05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11330506 | Use And Care Guide |
|
- | |||||
| 2 | W11088561 | Top (white) (Replaces: W10579199) |
|
$ 251.05 | |||||
| 3 | W10697252 | Panel, Rear |
|
- | |||||
| 4 | W10525749 | Clip, Drain Hose |
|
$ 12.04 | |||||
| 5 | W10703007 | Cabinet (white) |
|
$ 438.73 | |||||
| 6 | W11704120 | Panel, Front (white) (Replaces: W10721766) |
|
$ 336.92 | |||||
| 7 | W10564940 | Panel, Toe (white) |
|
Immediately | $ 280.31 | ||||
| 8 | W10685844 | Clip, Front Panel |
|
- | |||||
| 9 | W10632440 | Retainer, Front Panel |
|
$ 13.46 | |||||
| 10 | W11035628 | Lock, Door (Replaces: W10866069) |
|
$ 54.68 | |||||
| 11 | W10590587 | Cable-door Lock, Emergency Open |
|
$ 12.71 | |||||
| 12 | W11643138 | Foot, Leveling (Replaces: W10644894) |
|
$ 12.30 | |||||
| 13 | W10583233 | Bracket, Control |
|
$ 144.67 | |||||
| 14 | W11120585 | Bracket, Cross Top |
|
- | |||||
| 15 | W11088517 | Screw |
|
- | |||||
| 16 | W11132207 | Harness, Main |
|
Immediately | $ 344.73 | ||||
| 17 | W10658184 | Channel, Cable |
|
$ 72.50 | |||||
| 18 | W11502170 | Assembly, Console (white) (Replaces: W11306664) |
|
Immediately | $ 323.97 | ||||
| 19 | W11170566 | Handle, Drawer (white) |
|
Immediately | $ 68.63 | ||||
| 20 | W10869886 | Assembly, Timer Knob (inner) |
|
Immediately | $ 47.14 | ||||
| 21 | W11367297 | User Interface (Replaces: W11337199) |
|
Immediately | $ 425.99 | ||||
| 22 | 251921305003 | Screw |
|
$ 11.64 | |||||
| 23 | 251914602042 | Screw |
|
- | |||||
| 24 | W10840661 | Timer/ccu (complete) |
|
$ 293.94 | |||||
| 25 | W10868081 | Plug, Transport Bolt |
|
$ 10.83 | |||||
| 26 | W10891901 | Bolt, Transport |
|
$ 35.31 | |||||
| 27 | WPW10367632 | Filter, Rfi (Replaces: W10367632) |
|
$ 115.50 | |||||
| 28 | W10849440 | Power Cord |
|
$ 106.32 | |||||
| 29 | 461972493421 | Strain Relief, Power Cord |
|
$ 22.07 | |||||
| 30 | W10893953 | Screw |
|
$ 11.71 | |||||
| 31 | 461971019321 | Clamp, Cable |
|
$ 21.41 | |||||
| 32 | W10848668 | Screw (Replaces: W11091051) |
|
$ 17.71 | |||||
| 33 | 251921201061 | Screw |
|
$ 23.58 | |||||
| 1A | W11330503 | Energy Guide |
|
- | |||||
| 1B | W11330504 | Quick Start Guide |
|
- | |||||
| 20A | W10681353 | Assembly, Timer Knob (outer) |
|
$ 34.52 |
