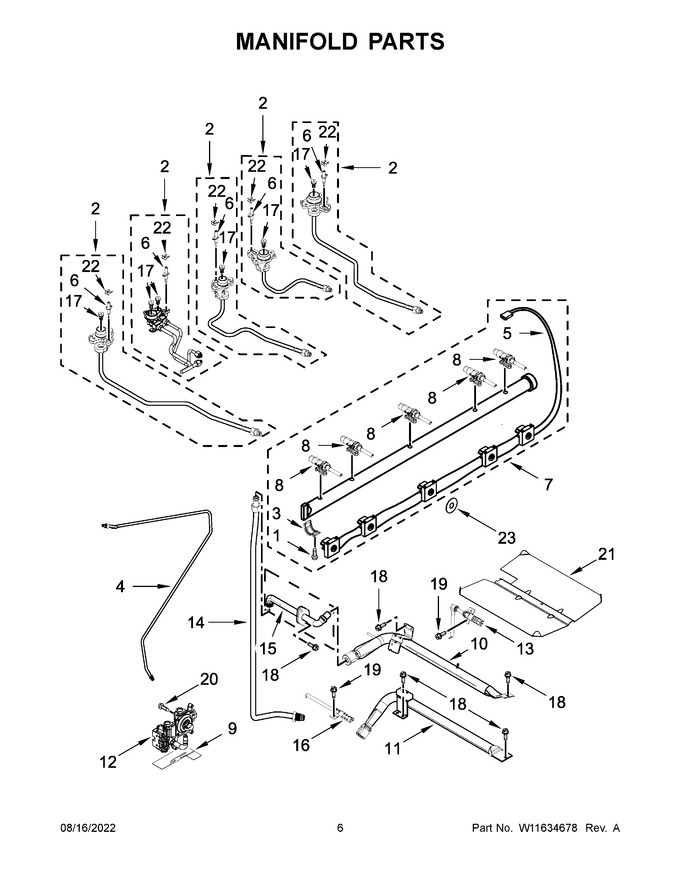

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11662212 | Orifice Assembly (left Front) (Replaces: W11230090) |
|
Immediately | $ 117.74 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 20.48 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 74.44 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 169.38 | ||||
| 6 | W11675301 | Electrode, Burner (left Front) (Replaces: W10898387) |
|
Immediately | $ 31.78 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 349.05 | |||||
| 8 | W11109973 | Valve, Gas Duel (left Front) (Replaces: W10432224) |
|
Immediately | $ 229.33 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 301.09 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W11662212 | Orifice (17k) (left Front) (Replaces: W11354861) |
|
Immediately | $ 117.74 | ||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 22 | W11684564 | Electrode, Spring (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 17A | W11354862 | Orifice (1.45k) (left Front) |
|
- | |||||
| 17B | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 17C | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 84.11 | ||||
| 17D | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 84.11 | |||||
| 17E | W10849715 | Orifice (8k) (center) |
|
- | |||||
| 2A | W11186509 | Orifice Assembly (left Rear) |
|
Immediately | $ 89.69 | ||||
| 2B | W11186526 | Orifice Assembly (right Front) |
|
Immediately | $ 89.71 | ||||
| 2C | W11186522 | Orifice Assembly (right Rear) |
|
Immediately | $ 89.37 | ||||
| 2D | W11186518 | Orifice Assembly (center) |
|
$ 89.42 | |||||
| 6A | W11666003 | Electrode (left Front, Right Front) (Replaces: W10669525) |
|
$ 43.57 | |||||
| 6B | W11643126 | Electrode, Burner (right Front & Center) (Replaces: W10669524) |
|
Immediately | $ 47.89 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 43.52 | |||||
| 8A | W10873134 | Valve, Gas (left Rear) (Replaces: W10831590) |
|
$ 245.39 | |||||
| 8B | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 175.63 | ||||
| 8C | W11233561 | Valve, Gas (right Rear & Center) (Replaces: W10566057) |
|
Immediately | $ 238.25 | ||||
| NI | NP | Trim, Front Stainless (not Serviced) |
|
- | |||||
| NI | W11087486 | Lp Conversion Kit (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 | ||||
| NI | WPW10400494 | Orifice, Lp Bake (Replaces: W10400494) |
|
Immediately | $ 102.11 | ||||
| NI | W11216991 | Orifice, Lp Broil (Replaces: W10465078) |
|
Immediately | $ 83.75 | ||||
| NI | W11436985 | Lp Conversion Kit (Replaces: W11397194) |
|
Immediately | $ 41.90 | ||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 |
