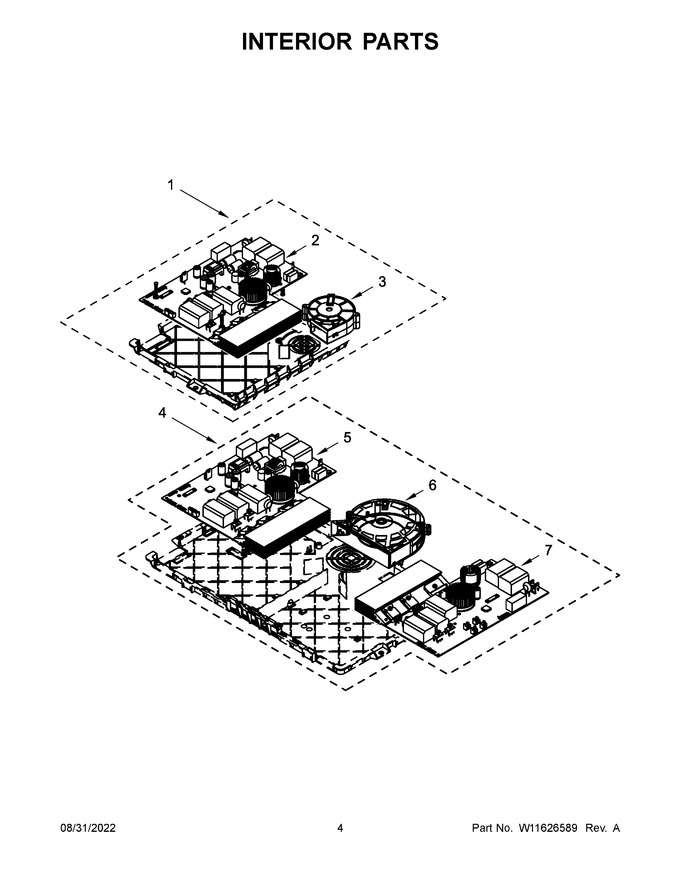

03 - Interior Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W11739786		Power Board (ascari)   (Replaces: W11611382)			Immediately	$ 793.03
3	W11251205		Blower Assembly (domino)			Immediately	$ 164.57
4	NP		Following Parts Not Illustrated		Appelez-nous	-
5	W11739786		Power Board (ascari)   (Replaces: W11611378)			Immediately	$ 793.03
6	W11246545		Blower Assembly			Immediately	$ 279.85
7	W11739786		Power Board (farina)   (Replaces: W11611379)			Immediately	$ 793.03
NI	W11249830		Communication Harness (ipc1 To Ipc2)				$ 47.65
NI	W11249832		Communication Harness (ipc2 To Ipc3)			Immediately	$ 32.83
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11347982		Jumper Harness (hmi To Ipc)			Immediately	$ 53.91
