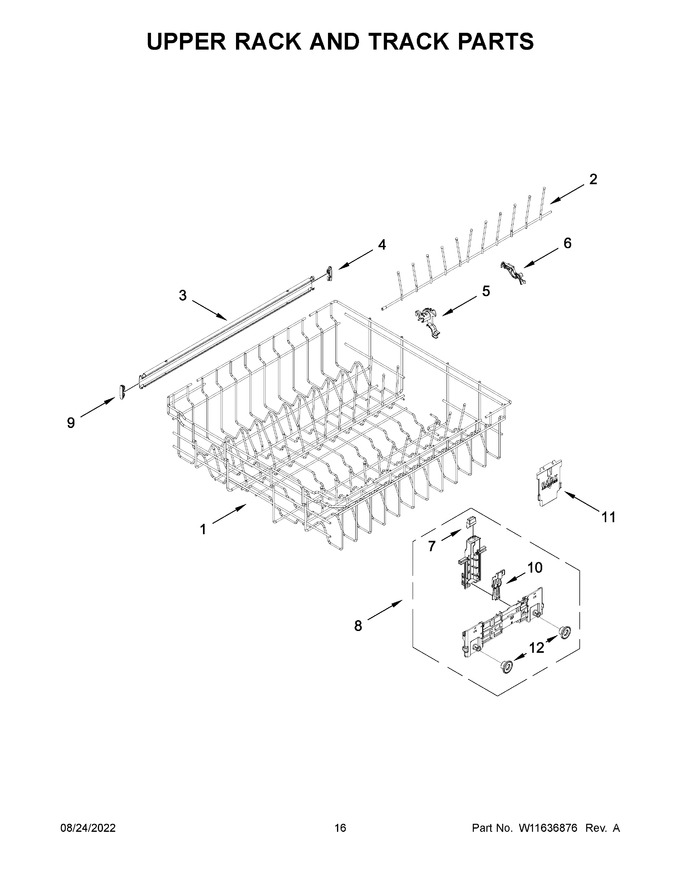

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672788 | Dishrack, Upper (Replaces: W10847876) |
|
Immediately | $ 175.66 | ||||
| 2 | W11806546 | Tine Row, Fold Down (Replaces: W11186528) |
|
Immediately | $ 61.80 | ||||
| 3 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 72.00 | ||||
| 4 | WP8565925 | Stop, Track (non-removable) (Replaces: W10082860) |
|
Immediately | $ 6.97 | ||||
| 5 | W11179794 | Positioner |
|
$ 20.81 | |||||
| 6 | W11627535 | Clip, Pivot (Replaces: W11179753) |
|
$ 23.83 | |||||
| 7 | W11267702 | Button, Adjuster Arm |
|
- | |||||
| 8 | W11662350 | Rack Adjuster (left Hand) (Replaces: W11503620) |
|
Immediately | $ 41.55 | ||||
| 9 | WPW10508950 | Stop, Track (removable) (Replaces: W10508950) |
|
$ 5.82 | |||||
| 10 | W11180178 | Leveler, Adjuster Arm |
|
$ 68.54 | |||||
| 11 | W11612314 | Clip, Adjuster Arm (Replaces: W11509750) |
|
$ 20.37 | |||||
| 12 | WP3385088 | Wheel (Replaces: 3379676) |
|
Immediately | $ 11.16 | ||||
| 8A | W11662349 | Rack Adjuster (right Hand) (Replaces: W11503619) |
|
Immediately | $ 41.21 |
