01 - Cover Sheet

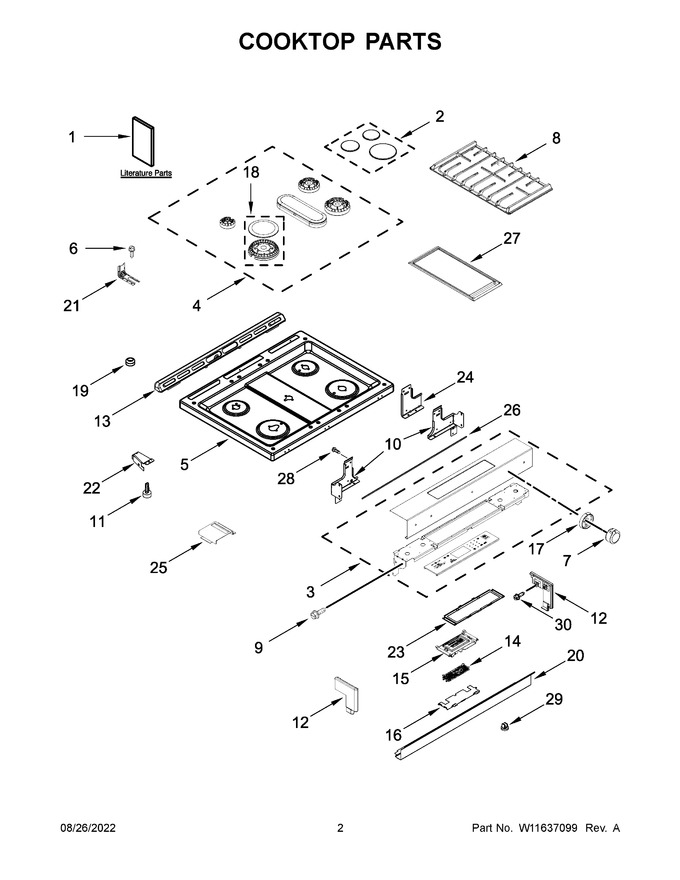

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11399120 | Installation Instructions |
|
- | |||||
| 2 | W11834855 | Burner Cap Kit (black (set Of 3)) (Replaces: W11367440) |
|
- | |||||
| 3 | W10913685 | Console (stainless) (Replaces: W10901118) |
|
$ 730.75 | |||||
| 4 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 257.45 | ||||
| 5 | W11445310 | Cooktop (stainless) (Replaces: W11117940) |
|
$ 420.47 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W10872668 | Knob (stainless (all Except Left Front)) (Replaces: W10786065) |
|
Immediately | $ 118.35 | ||||
| 8 | W11241056 | Grate Kit (black) (Replaces: W11188538) |
|
$ 368.89 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 27.05 | |||||
| 11 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 12 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 13 | W10577782 | Trim, Vent (stainless) |
|
$ 129.21 | |||||
| 14 | W11620672 | Control, Mrc2 (Replaces: W11541188) |
|
$ 335.25 | |||||
| 15 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 529.17 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 17 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 102.04 | ||||
| 18 | W11443594 | Burner Kit (includes Cap & Spreader) (left Front) (Replaces: W11366282) |
|
Immediately | $ 148.74 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 20 | W10743276 | Console, Lower Panel (stainless) |
|
$ 78.01 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 25 | W11355689 | Keypad Shield |
|
$ 20.38 | |||||
| 26 | W11620671 | Gasket, Console/ Cooktop (Replaces: W11512127) |
|
$ 22.61 | |||||
| 27 | W10432544 | Griddle |
|
Immediately | $ 59.79 | ||||
| 28 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 29 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 30 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 10A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 12A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 1A | W11426594 | Owners Manual |
|
- | |||||
| 1B | W11565456 | Tech Sheet |
|
- | |||||
| 1C | W11427468 | Quick Start Guide |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 7A | W10872674 | Knob (stainless (left Front)) (Replaces: W10786064) |
|
Immediately | $ 60.34 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11198972 | Harness, Bake/broil (Replaces: W10754419) |
|
$ 32.26 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 34.40 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W10580265 | Harness, Bake/warm Drawer |
|
Immediately | $ 79.23 | ||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | W11465360 | Harness, Main |
|
$ 166.68 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 |
