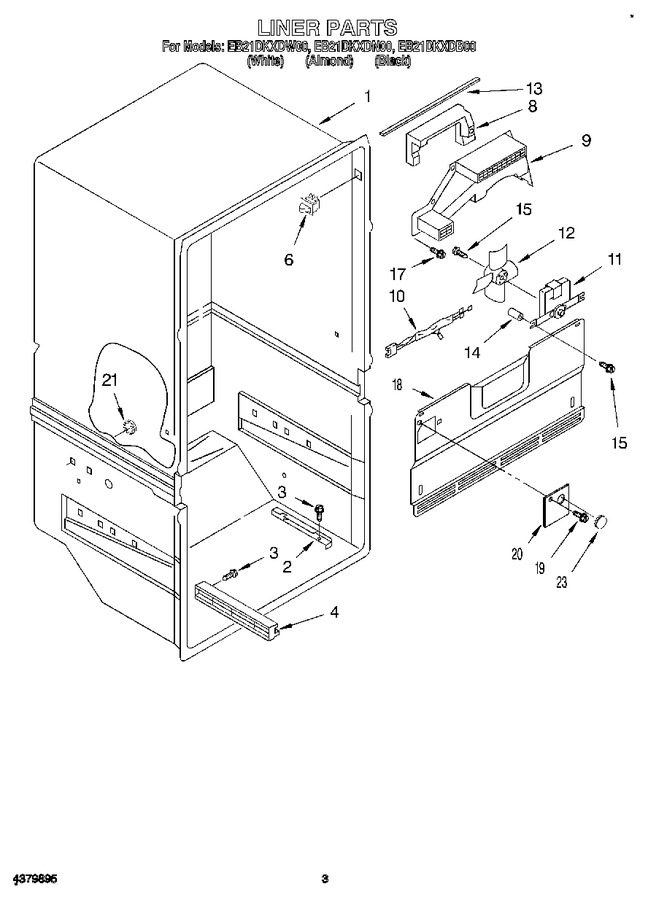

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	986382		Slide, Basket (right Side)		Appelez-nous	-
2	986383		Slide, Basket (left Side)		Appelez-nous	-
3	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
4	2149174		Shelf Track, (left Side)		Appelez-nous	-
4	2149175		Shelf Track, (right Side)		Appelez-nous	-
6	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
8	2160525		Insert, Scroll		Appelez-nous	-
9	2152779		Scroll, Fan		Appelez-nous	-
10	1127434		Wiring Assembly, Fan Motor		Appelez-nous	-
11	2160412		Fan Motor		Appelez-nous	-
12	2169141		Fan Blade		Appelez-nous	-
13	2160533		Gasket, Fan Scroll		Appelez-nous	-
14	531933		Grommet (2)				$ 5.70
15	489168		Screw		Appelez-nous	-
17	WP489478		Screw   (Replaces: 489242)				$ 8.18
18	2152796		Cover, Evaporator		Appelez-nous	-
19	WP488729		Screw   (Replaces: 489451)			Immediately	$ 8.28
20	2152827		Hole Cover, Evaporator		Appelez-nous	-
21	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 8.03
23	1103725		Hole Plug		Appelez-nous	-
