Body Parts

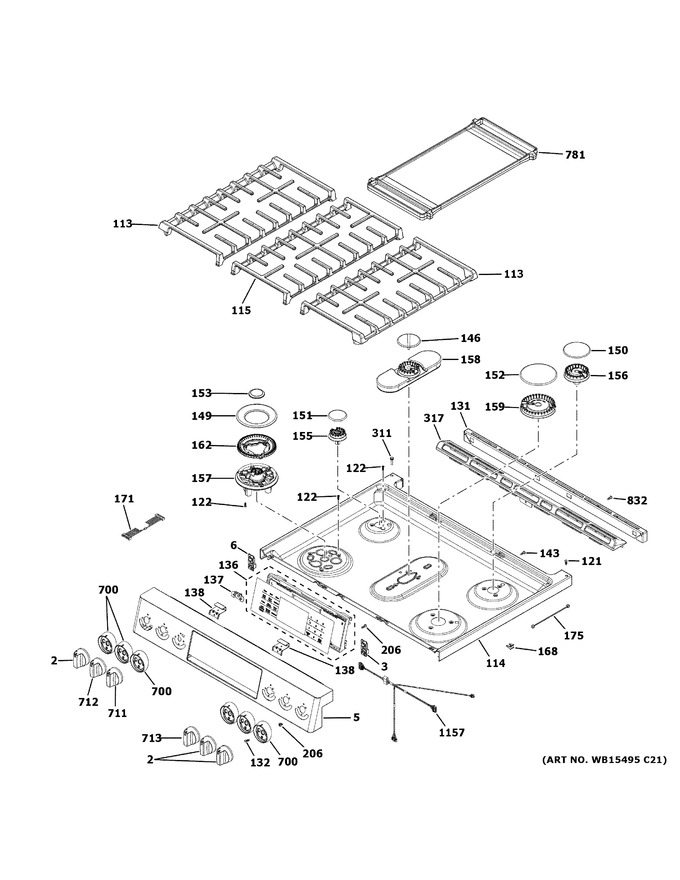

Control Panel & Cooktop
Convection Fan
Door & Drawer Parts
Gas & Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB03X28962 | Knob Asm |
|
- | |||||
| 3 | WB27X39766 | Kit Wifi Module Service |
|
- | |||||
| 5 | WB56X35450 | Stainless Steel Panel Manifold |
|
- | |||||
| 6 | WB27X41872 | Ble Module |
|
- | |||||
| 113 | WB31X28755 | Grate Asm |
|
- | |||||
| 114 | WB62X28231 | Range Top |
|
- | |||||
| 115 | WB31X28255 | Central Grate |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 131 | WB07X28824 | Trim Kit |
|
- | |||||
| 132 | WB01K10086 | Scr 8-18 Ab Trp 3/8 Ss |
|
- | |||||
| 136 | WB27X41895 | Glass & Touch Board |
|
- | |||||
| 137 | WB34X28910 | Bracket Switch |
|
- | |||||
| 138 | WB34X28237 | Bracket |
|
- | |||||
| 143 | WB1X5754 | Screw 8-18 Abt 1/2 S |
|
- | |||||
| 146 | WS01F07283 | Asm, Burner Cap Center, Dual Oval (Replaces: WB29X24971) |
|
$ 13.57 | |||||
| 149 | WB29X28253 | Outer Cap |
|
- | |||||
| 150 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 15.72 | ||||
| 151 | WB16X28654 | Asm. Cap, Burner Small V2 |
|
$ 28.45 | |||||
| 152 | WS01F02544 | Cap Burner Xl (Replaces: WB28K10222) |
|
Immediately | $ 16.59 | ||||
| 153 | WB16X28252 | Inner Cap Black |
|
- | |||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 156 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 157 | WB16X28656 | Base Burner |
|
- | |||||
| 158 | WB16X28965 | Asm, Burner And End Cap Dual Oval |
|
- | |||||
| 159 | WB16X24722 | Burner, Xl V2 |
|
- | |||||
| 162 | WB16X28764 | Head Burner |
|
- | |||||
| 168 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 171 | WB18X28905 | Harness Interface |
|
- | |||||
| 175 | WB18X27594 | Harness Ground |
|
- | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 311 | WB02X24790 | Bumper |
|
- | |||||
| 317 | WB07X28819 | Vent Trim |
|
- | |||||
| 700 | WB03X28167 | Skirt |
|
- | |||||
| 711 | WB03X28956 | Knob Asm |
|
- | |||||
| 712 | WB03X28963 | Knob Asm |
|
- | |||||
| 713 | WB03X28961 | Knob Asm |
|
- | |||||
| 781 | WS01L13930 | Reversible Griddle (Replaces: WB31X24998) |
|
Immediately | $ 112.37 | ||||
| 832 | WB1K21 | Screw |
|
- | |||||
| 1157 | WB18X41891 | Harness Wire Jumper Pmva |
|
- |
