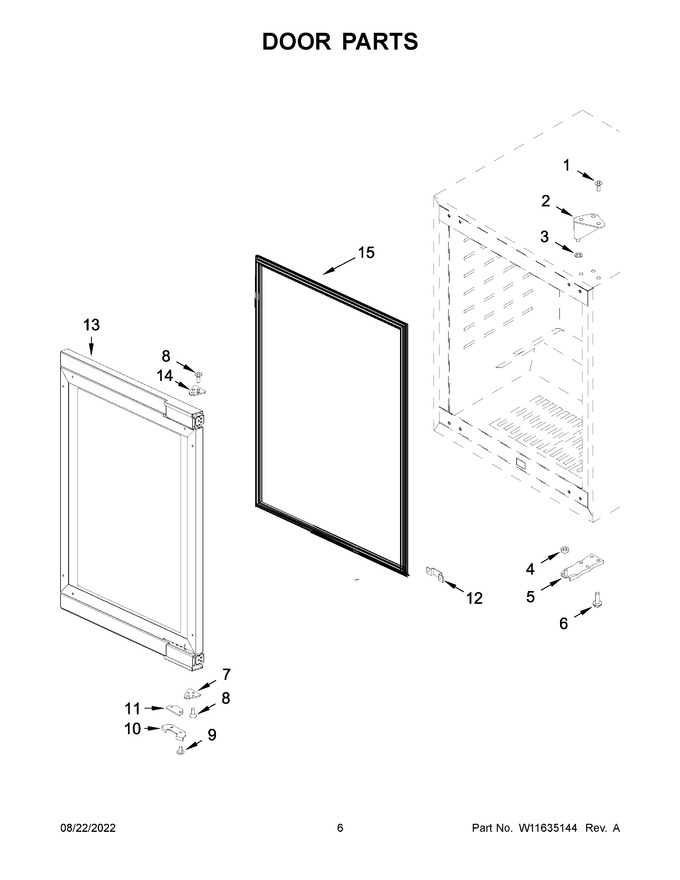

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344796 | Screw |
|
$ 15.14 | |||||
| 2 | 4344754 | Hinge, Top |
|
$ 80.11 | |||||
| 3 | 4344760 | Washer |
|
$ 14.32 | |||||
| 4 | W11241702 | Washer (Replaces: W10162992) |
|
$ 12.84 | |||||
| 5 | W10239363 | Bottom Hinge (right Hinge) |
|
$ 72.55 | |||||
| 6 | W10780355 | Bolt |
|
$ 45.17 | |||||
| 7 | 4344798 | Spacer, Bottom Hinge |
|
$ 18.03 | |||||
| 8 | W10243123 | Screw (Replaces: W10797377) |
|
$ 15.14 | |||||
| 9 | 4344801 | Screw |
|
$ 15.14 | |||||
| 10 | 4344802 | Door Stop |
|
$ 19.78 | |||||
| 11 | 4344803 | Spacer, Door |
|
$ 157.94 | |||||
| 12 | W10622808 | Switch Plate |
|
$ 24.54 | |||||
| 13 | W11431152 | Door Assembly (right Hinge) (Replaces: W10803977) |
|
$ 767.34 | |||||
| 14 | 4344804 | Spacer, Top Hinge |
|
$ 18.03 | |||||
| 15 | WPW10624183 | Gasket, Door (Replaces: W10624183) |
|
$ 244.37 | |||||
| 13A | W11431105 | Door Assembly (left Hinge) (Replaces: W10803978) |
|
$ 771.74 | |||||
| 5A | 4344787 | Bottom Hinge (left Hinge) |
|
$ 195.62 |
