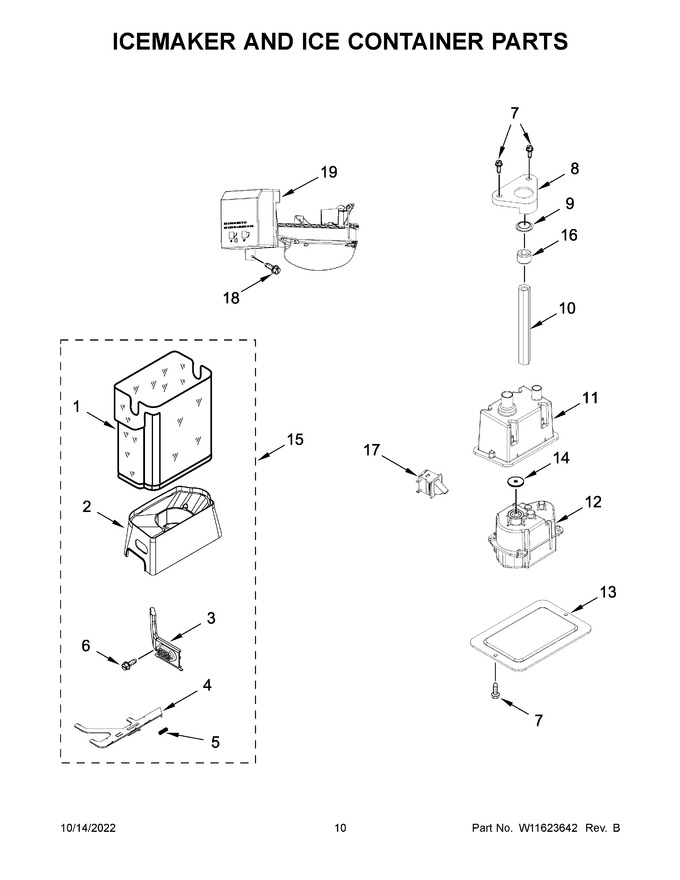

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 236.39 | ||||
| 2 | W11627400 | Bin, Lower Crusher (Replaces: W11567291) |
|
- | |||||
| 3 | W10749207 | Button, Bin |
|
$ 62.73 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 99.86 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 6.80 | |||||
| 6 | 2198671 | Screw (stainless) |
|
$ 9.83 | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 8 | W11636223 | Clip, Shaft (Replaces: W11443152) |
|
- | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 103.73 | ||||
| 11 | W11608470 | Enclosure, Dispenser Motor |
|
- | |||||
| 12 | W10822606 | Motor, Dispenser (Replaces: W11185741) |
|
Immediately | $ 164.30 | ||||
| 13 | W11608469 | Cover, Dispenser Motor |
|
- | |||||
| 14 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 9.55 | ||||
| 15 | W11747578 | Assembly, Ice Container (Replaces: W11574172) |
|
Immediately | $ 398.94 | ||||
| 16 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
$ 76.87 | |||||
| 17 | W11629953 | Switch, Auger Motor (Replaces: W11592419) |
|
$ 23.99 | |||||
| 18 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 19 | W11735839 | Assembly, Complete Icemaker (Replaces: W11458114) |
|
Immediately | $ 496.79 |
