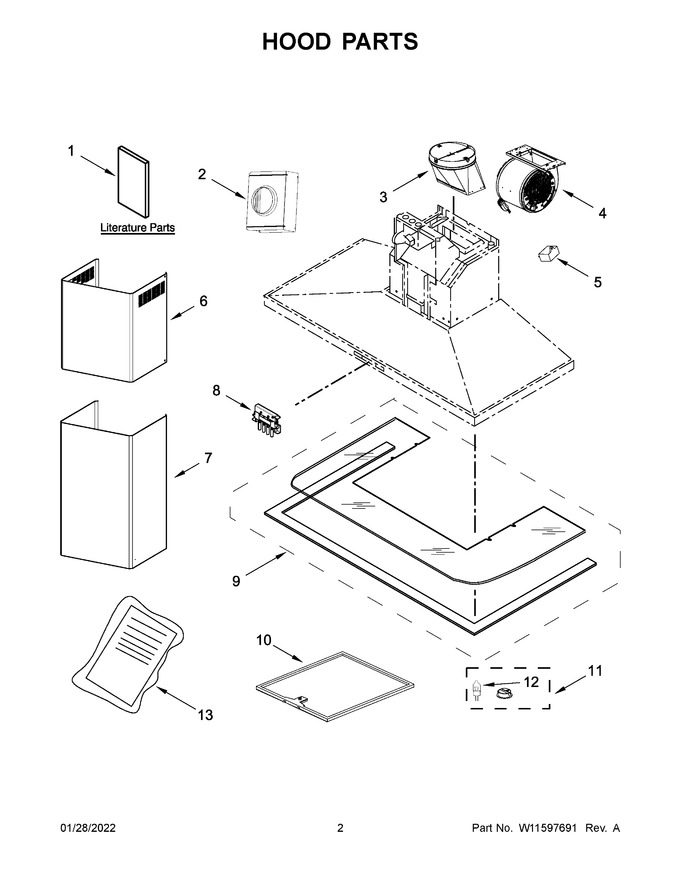

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10502583 | Use And Care Guide |
|
- | |||||
| 2 | W11328674 | Deflector, Recirculation |
|
- | |||||
| 3 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 147.46 | |||||
| 4 | W10894803 | Motor, Fan |
|
$ 338.56 | |||||
| 5 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 6 | W11590865 | Chimney, Upper (Replaces: W10313840) |
|
$ 350.33 | |||||
| 7 | W11590865 | Chimney, Lower (Replaces: W10313839) |
|
$ 350.33 | |||||
| 8 | WPW10727063 | Switch, Push Button (Replaces: W10504432) |
|
$ 234.46 | |||||
| 9 | W10562736 | Assembly, Glasss And Trim With Badge |
|
- | |||||
| 10 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 39.53 | ||||
| 11 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 125.53 | ||||
| 12 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 26.18 | ||||
| 13 | W10562737 | Hardware, Installation |
|
- |
