01 - Cover Sheet

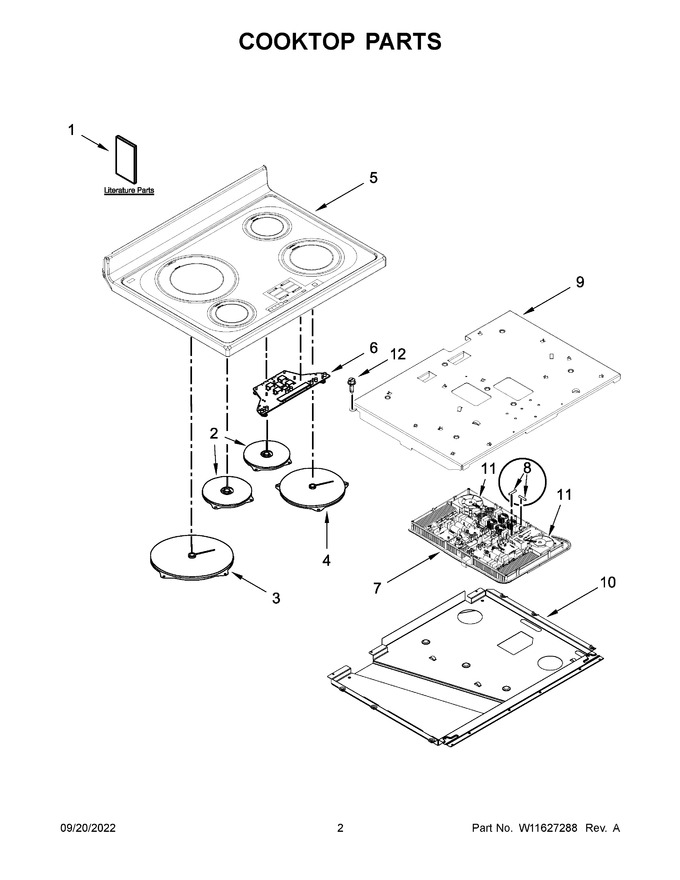

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427490		Owner's Manual		Appelez-nous	-
2	WPW10410580		Hotplate (left Front & Right Rear)   (Replaces: W10410580)				$ 230.27
3	WPW10460400		Hotplate (left Rear)   (Replaces: W10460400)				$ 272.31
4	WPW10536262		Hotplate (right Front)   (Replaces: W10536262)				$ 227.82
5	W10777613		Cooktop (stainless)   (Replaces: W10687992)				$ 643.90
6	W10818273		Control, Ui   (Replaces: W10808236)			Immediately	$ 603.35
7	W10873518		Assembly, Induction Module				$ 493.03
8	WPW10328492		Fuse   (Replaces: W10328492)			Immediately	$ 109.29
9	W10454938		Plate, Induction				$ 311.53
10	W10564364		Assembly, Induction Pan				$ 311.71
11	W10328381		Fan, Cooling (left)			Immediately	$ 324.00
12	4450800		Screw, Grounding				$ 12.12
11A	W10328378		Fan, Cooling (right)				$ 325.92
1A	W11430270		Quick Start Guide		Appelez-nous	-
1B	W11325873		Tech Sheet		Appelez-nous	-
NI	7401P15760		Block, Bare Wire Adapter		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	7101P02760		Screw, Ground		Appelez-nous	-
NI	W11172531		Harness, Sensor & Locks				$ 107.28
NI	7103P02760		Nut		Appelez-nous	-
NI	W11172529		Harness, Signal			Immediately	$ 110.81
NI	W11171882		Harness, Main		Appelez-nous	-
NI	W11243763		Board, Transient Suppressor   (Replaces: W10590933)				$ 179.87
NI	8019P01360		Clip, Wire Lock		Appelez-nous	-
