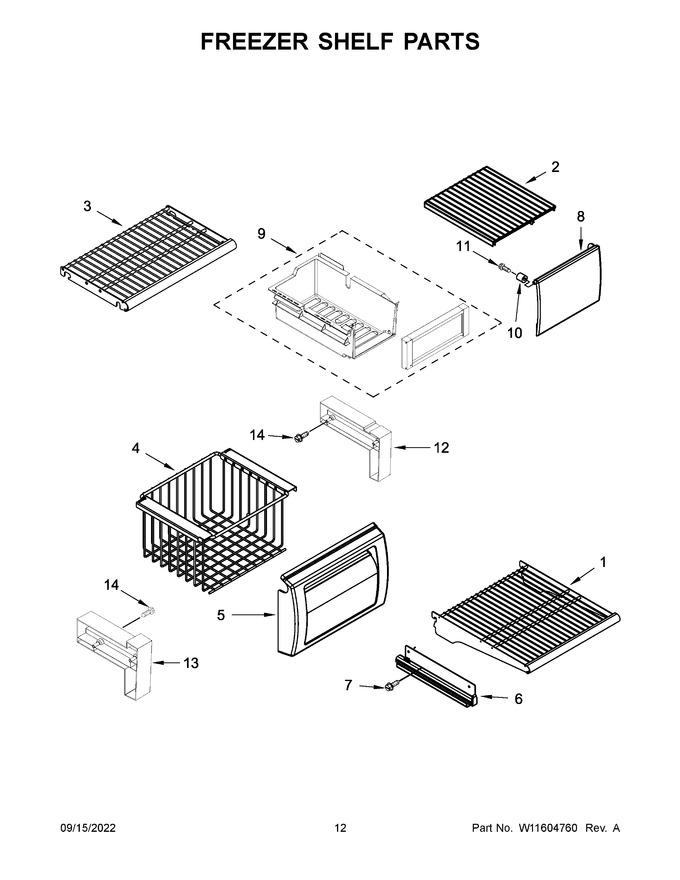

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11455934		Shelf, Fc Wire		Appelez-nous	-
2	W11527875		Cover, Shelf		Appelez-nous	-
3	W11455932		Shelf, Fixed		Appelez-nous	-
4	W11452324		Basket, Freezer		Appelez-nous	-
5	W11452328		Front, Freezer Basket		Appelez-nous	-
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 285.62
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
8	W11452421		Door, Ice				$ 155.34
9	W11452358		Assembly, Ice Bucket		Appelez-nous	-
10	W10785704		Spacer, Ice Door   (Replaces: W11452423)				$ 13.07
11	W10784931		Screw (black)				$ 11.75
12	W11511688		Spacer, Ice		Appelez-nous	-
13	W11630202		Spacer, Basket   (Replaces: W11511689)		Appelez-nous	-
14	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
6A	2259317		Slide, Basket (right Hand)				$ 209.96
