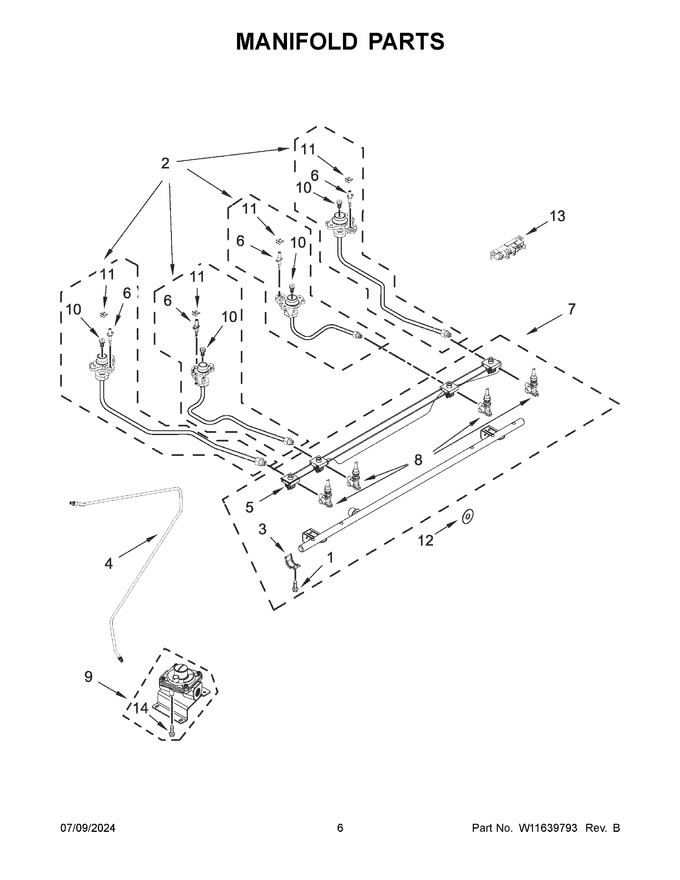

JDS1750ML0 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W11577790	Screw	Appelez-nous	-
2	W11186525	Orifice, Assembly (right Front)	Appelez-nous	-
3	W10949105	Bracket, Saddle Valve			$ 20.48
4	W10552945	Tube, Supply			$ 84.82
5	W11596358	Harness, Spark Switch	Appelez-nous	-
6	W11661897	Electrode, Burner (right Rear) (Replaces: W10669523)			$ 43.52
7	W11602207	Manifold, Assembly			$ 225.58
8	W11620675	Valve, Gas (left Front And Right Front) (Replaces: W11511818)		Immediately	$ 63.29
9	W10661850	Assembly, Regulator And Bracket			$ 118.13
10	W10849717	Orifice (15k) (right Front)		Immediately	$ 84.11
11	W11684564	Electrode, Spring (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10827923)		Immediately	$ 11.39
12	W11768651	Seal, Switch Shaft (Replaces: W11507167)			$ 18.27
13	W11693498	Module, Spark (Replaces: W10475148)		Immediately	$ 95.14
14	W10416084	Screw	Appelez-nous	-
10A	W10849714	Orifice (9.5k) (right Rear)			$ 84.11
10B	W10849722	Orifice (18k) (left Front)	Appelez-nous	-
10C	W11677633	Orifice (5k) (left Rear) (Replaces: W10849719)			$ 89.24
2A	W11186521	Orifice, Assembly (right Rear)	Appelez-nous	-
2B	W11186508	Orifice, Assembly (left Rear)			$ 69.80
2C	W11186512	Orifice, Assembly (left Front)			$ 67.38
6A	W11643126	Electrode, Burner (right Front) (Replaces: W10669524)		Immediately	$ 47.89
6B	W11666003	Electrode (left Rear) (Replaces: W10669525)			$ 43.57
6C	W11661929	Electrode, Burner (left Front) (Replaces: W10669526)		Immediately	$ 45.19
8A	W11620676	Valve, Gas (left Rear) (Replaces: W11511819)			$ 63.29
8B	W11620677	Valve, Gas (right Rear) (Replaces: W11511824)			$ 63.29
NI	NP	Cabinet (not A Servicable Part)	Appelez-nous	-
NI	W11126047	Kit, Lp Conversion (Replaces: W10566083)		Immediately	$ 113.85
NI	WPW10182767	Tie, Manifold Wire (Replaces: W10182767)			$ 6.57
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D	Following Parts Not Illustrated	Appelez-nous	-
