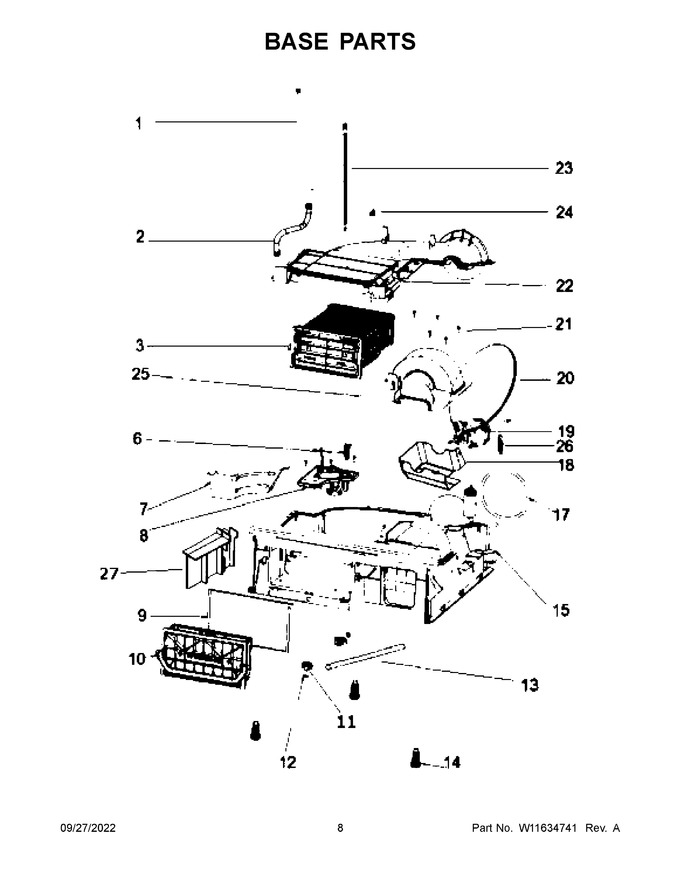

05 - Base Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11519727 | U-bend, Drain Hose (Replaces: W11135419) |
|
$ 30.64 | |||||
| 2 | W11519728 | Hose, Recirculation (Replaces: W11216570) |
|
Immediately | $ 35.65 | ||||
| 3 | W11519729 | Condenser (Replaces: W11329917) |
|
- | |||||
| 6 | W11527199 | Sensor, Water Level (complete) (Replaces: W11164669) |
|
Immediately | $ 107.93 | ||||
| 7 | W11517005 | Bracket, Pump (Replaces: W11173367) |
|
- | |||||
| 8 | W11516811 | Pump Asm 60hz (Replaces: W11340086) |
|
$ 172.28 | |||||
| 9 | W11517008 | Seal, Base (Replaces: W11356631) |
|
- | |||||
| 10 | W11516807 | Housing, Filter (front) (Replaces: W11386566) |
|
- | |||||
| 11 | W11526982 | Fitting, Drain (Replaces: W11317184) |
|
Immediately | $ 17.89 | ||||
| 12 | W11516772 | Seal, O-ring (Replaces: C00620153) |
|
- | |||||
| 13 | W11516792 | Hose, Tube (Replaces: W11321297) |
|
- | |||||
| 14 | 461971007235 | Foot |
|
Immediately | $ 10.59 | ||||
| 15 | W11516793 | Assembly, Base (complete) (Replaces: W11038445) |
|
$ 212.37 | |||||
| 17 | W11526994 | Seal, Base (rear Panel) (Replaces: W10856708) |
|
- | |||||
| 18 | W11516805 | Bracket, Motor (base) (Replaces: W11168388) |
|
- | |||||
| 19 | W11519731 | Motor (Replaces: W10887497) |
|
Immediately | $ 408.55 | ||||
| 20 | W11661103 | Belt (Replaces: W10824411) |
|
Immediately | $ 32.09 | ||||
| 21 | W11527190 | Screw M4 X 16 (Replaces: 251925600054) |
|
- | |||||
| 22 | W11527195 | Cover, Base (Replaces: W11341298) |
|
$ 165.73 | |||||
| 23 | W11512160 | Hose, Inflow (Replaces: W11101851) |
|
Immediately | $ 40.41 | ||||
| 24 | W11516798 | Clamp, Hose 16.8mm (Replaces: W11231252) |
|
- | |||||
| 25 | W11527197 | Cover, Fan (Replaces: W11038456) |
|
$ 79.90 | |||||
| 26 | W11516773 | Spring, Belt Tensioning (Replaces: C00526667) |
|
- | |||||
| 27 | W11527198 | Bracket, Reed Switch (Replaces: W11373359) |
|
- | |||||
| 10A | W11516779 | Magnets, Door Switch (Replaces: C00075612) |
|
- | |||||
| 15A | 251925600056 | Screw |
|
- | |||||
| 19A | W11516774 | Screw M8 - 1.25 X 60 (Replaces: C00526674) |
|
- | |||||
| 6A | W11526959 | Seal (Replaces: W11327488) |
|
- |
