01 - Cover Sheet

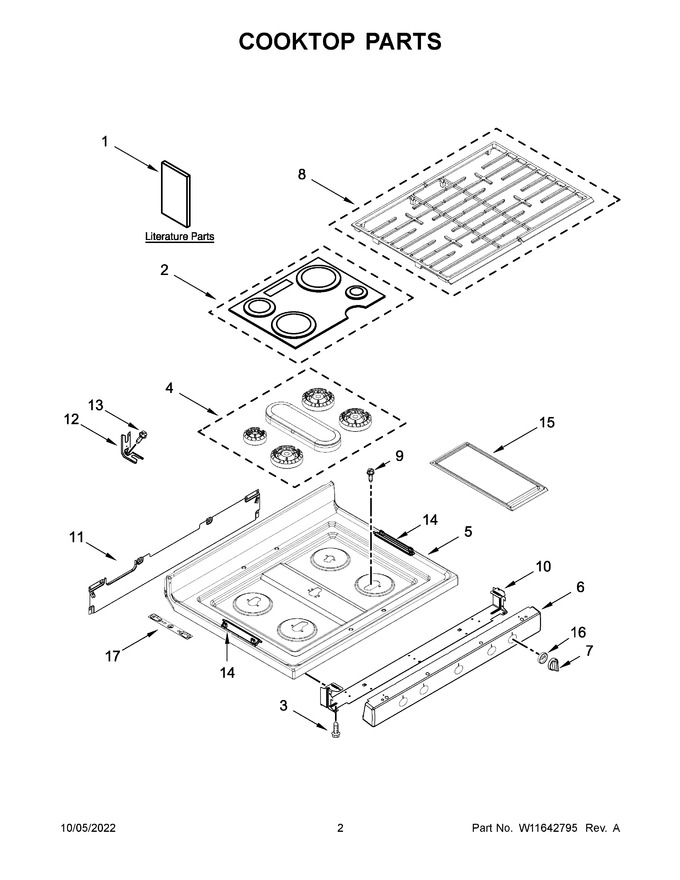

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11427474 | Quick Start Guide |
|
- | |||||
| 2 | W11605759 | Burner Cap Kit (black (set Of 4)) (Replaces: W11498499) |
|
Immediately | $ 67.82 | ||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | W11662402 | Burner Kit (Replaces: W11367106) |
|
Immediately | $ 117.10 | ||||
| 5 | W11459372 | Cooktop (black) (Replaces: W11418087) |
|
$ 407.62 | |||||
| 6 | W11176796 | Panel, Manifold (black) (Replaces: W10867880) |
|
Immediately | $ 215.07 | ||||
| 7 | W11176800 | Knob (black) (Replaces: W10912202) |
|
Immediately | $ 72.86 | ||||
| 8 | W11175178 | Grate Kit (black) (Replaces: W10865170) |
|
$ 328.43 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 10 | W11379946 | Manifold Panel Bracket |
|
- | |||||
| 11 | W11379358 | Rear Gas Cooktop Bracket |
|
- | |||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 13 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 14 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 15 | W11123246 | Griddle (Replaces: W11043399) |
|
$ 92.27 | |||||
| 16 | W10912201 | Bezel (black) |
|
- | |||||
| 17 | W10879790 | Grate Hinge Spacer |
|
- | |||||
| 16A | W10918523 | Bezel (white) |
|
- | |||||
| 1A | W11448510 | Use & Care Guide |
|
- | |||||
| 1B | W11565452 | Tech Sheet |
|
- | |||||
| 5A | W11483225 | Cooktop (white) (Replaces: W11418088) |
|
$ 408.27 | |||||
| 6A | W11176799 | Panel, Manifold (white) (Replaces: W10867879) |
|
- | |||||
| 7A | W11176806 | Knob (white) (Replaces: W10918417) |
|
$ 70.37 | |||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11458869 | Harness, Main |
|
- |
