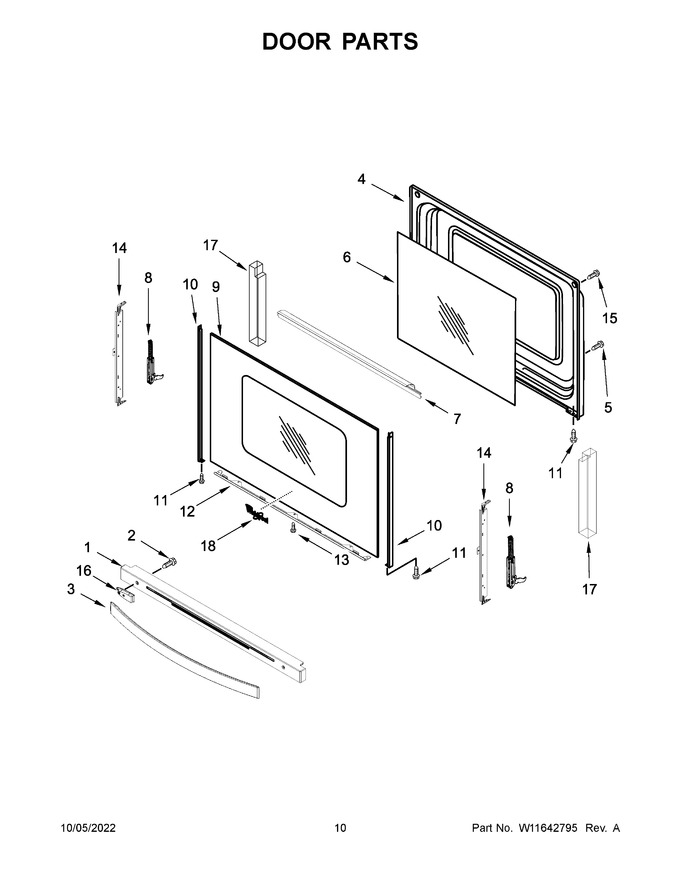

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106938		Vent, Trim (black)   (Replaces: W10880611)				$ 128.03
2	W10896982		Screw   (Replaces: W10477496)				$ 7.56
3	W11107394		Handle, Door (black)   (Replaces: W11022643)				$ 206.51
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
7	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
8	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
9	W11705268		Glass Assembly, Outer Door (black)   (Replaces: W10871829)			Immediately	$ 145.04
10	W10334004		Trim, Side (black)				$ 210.38
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	W10334031		Trim, Bottom (black)				$ 70.07
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
15	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38
16	W10917796		Standoff, Handle (black)				$ 64.81
17	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
18	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
10A	W10334003		Trim, Side (white)			Immediately	$ 80.72
12A	WPW10333990		Trim, Bottom (white)   (Replaces: W10333990)			Immediately	$ 72.20
16A	W10917797		Standoff, Handle (white)			Immediately	$ 64.81
1A	W11106937		Vent, Trim (white)   (Replaces: W10880612)			Immediately	$ 131.80
3A	W11107407		Handle, Door (white)   (Replaces: W11022644)				$ 213.73
9A	W11107890		Glass Assembly, Outer Door (white)   (Replaces: W10871830)				$ 331.75
