01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts

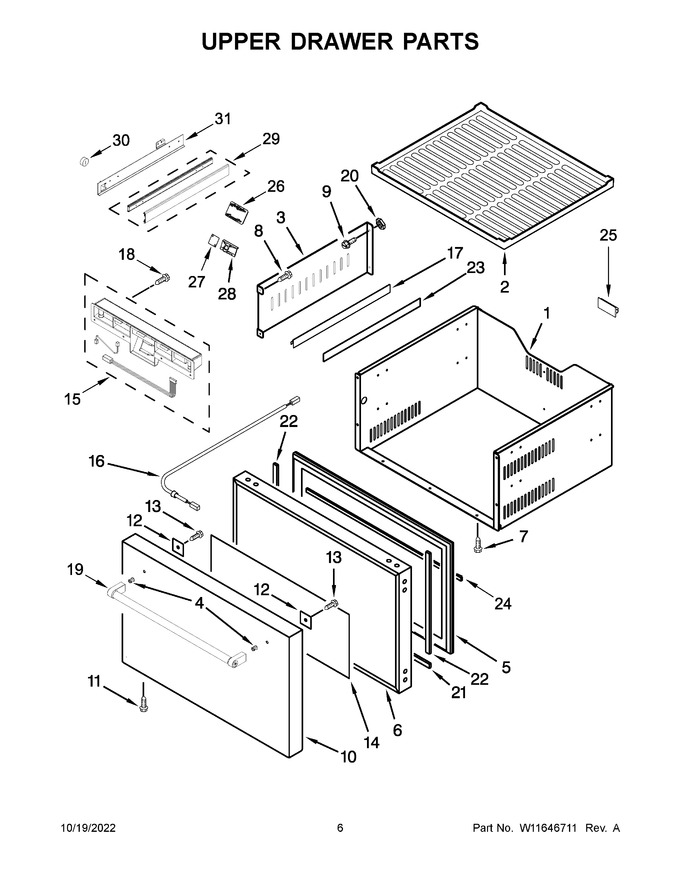

04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11649784		Drawer Box Assembly, Upper   (Replaces: W11646492)		Appelez-nous	-
2	W11568835		Mat, Upper Drawer		Appelez-nous	-
3	W11646438		Drawer Partition		Appelez-nous	-
4	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 14.96
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 164.78
6	W10789531		Top Foamed Door Assembly				$ 549.19
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10796876		Wrap, Stainless				$ 439.37
11	W11051564		Screw   (Replaces: W10796877)				$ 13.98
12	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W11646471		Control Panel Assembly				$ 566.56
16	W10789534		Harness, Display To Indicator			Immediately	$ 135.57
17	W10622013		Support, Lead Wire				$ 25.83
18	W10204808		Screw		Appelez-nous	-
19	W10708004		Handle   (Replaces: W11646480)			Immediately	$ 127.22
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W11442514		Wire Support Tape		Appelez-nous	-
24	W10287957		Seal, Cold Air		Appelez-nous	-
25	W10772901		Support, Wire				$ 17.60
26	W10204929		Lamp Cover				$ 80.26
27	W10204930		Led Lamp				$ 312.84
28	W10204931		Lamp Holder				$ 71.69
29	WPW10233777		Rail Assembly   (Replaces: W10233777)				$ 314.42
30	W10624158		Bumper Support				$ 20.57
31	W10789525		Support Shelf, Left Hand				$ 265.33
31A	W10789528		Support Shelf, Right Hand				$ 311.11
NI	W10788702		Overlay Installation Kit				$ 96.93
NI	NP		Box, Burner (not Serviced)		Appelez-nous	-
