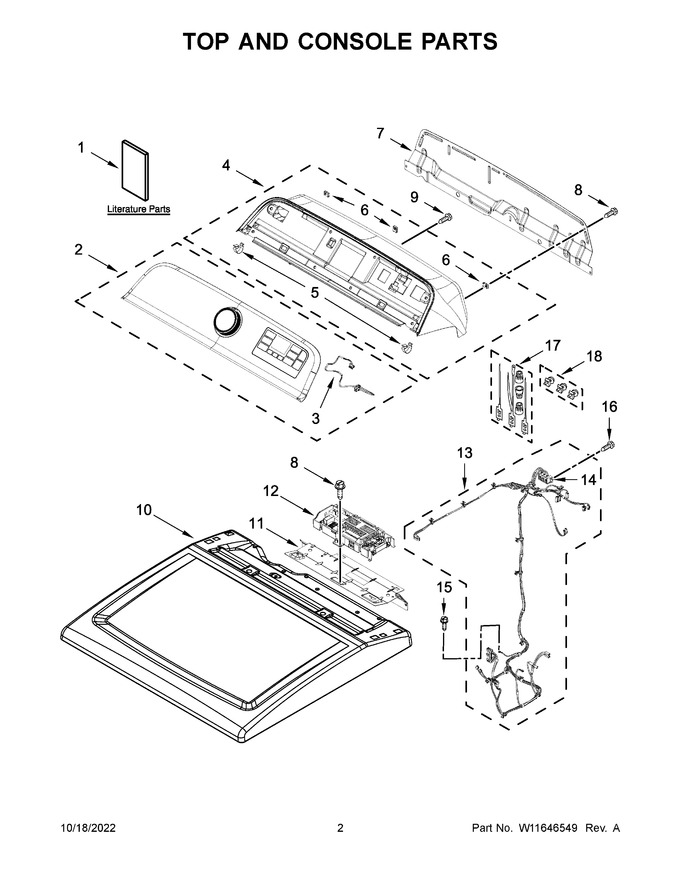

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Dryer Heating Parts-electric


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555818		Installation Instructions		Appelez-nous	-
2	W11793911		Assembly, Console Fascia (complete)   (Replaces: W11164010)			Immediately	$ 416.37
3	W11721377		Harness, User Interface (hmi)   (Replaces: W11164276)				$ 27.98
4	W11406678		Console (white)   (Replaces: W11127506)			Immediately	$ 339.08
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
7	W11433112		Panel, Rear Console				$ 59.47
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
10	W11641121		Top (white)   (Replaces: W11623537)			Immediately	$ 193.59
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 51.62
12	W11525996		Appliance Control Unit (acu)   (Replaces: W11496634)			Immediately	$ 321.51
13	W11690904		Harness, Main   (Replaces: W11556657)				$ 211.59
14	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
15	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
16	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
18	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
10A	W11641122		Top (chrome Shadow)   (Replaces: W11623547)				$ 241.94
1A	W11555135		Quick Start Guide		Appelez-nous	-
4A	W11406679		Console (chrome Shadow)   (Replaces: W11128046)				$ 340.70
