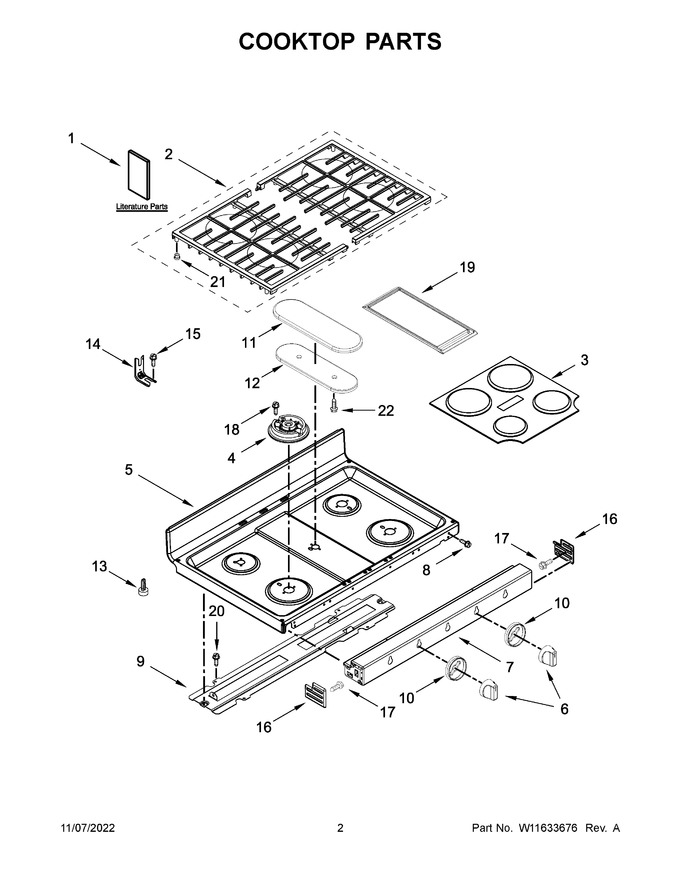

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426601		Owner's Manual		Appelez-nous	-
2	W11673268		Grate Kit (includes 2 Grates)   (Replaces: W11241660)				$ 329.03
3	WPW10299236		Kit, Burner Cap (black)   (Replaces: W10299236)			Immediately	$ 202.94
4	WPW10406878		Head, Burner (17.5k) (left Front)   (Replaces: W10406878)				$ 96.73
5	W10336330		Cooktop (black)   (Replaces: W10260169)				$ 378.06
6	W11160334		Knob (stainless)   (Replaces: W10886658)			Immediately	$ 75.41
7	W11228125		Panel, Manifold (stainless)   (Replaces: W10711043)			Immediately	$ 245.64
8	7101P63360		Screw (black)		Appelez-nous	-
9	W10518258		Bracket, Cooktop Support		Appelez-nous	-
10	W11188712		Bezel   (Replaces: W10850043)			Immediately	$ 55.33
11	WPW10171140		Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140)				$ 151.62
12	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 99.05
13	8016P02260		Glide, Main Top		Appelez-nous	-
14	3801F65651		Bracket, Anti-tip		Appelez-nous	-
15	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
16	W10823301		Cap, End (stainless (left))		Appelez-nous	-
17	7101P63460		Screw		Appelez-nous	-
18	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
19	W10432544		Griddle			Immediately	$ 62.78
20	7101P37660		Screw		Appelez-nous	-
21	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 11.86
22	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
16A	W10823299		Cap, End (stainless (right))		Appelez-nous	-
1A	W11430267		Quick Service Guide		Appelez-nous	-
1B	W11565449		Tech Sheet		Appelez-nous	-
4A	WPW10406243		Head, Burner (6k) (left Rear And Right Rear)   (Replaces: W10406243)			Immediately	$ 35.17
4B	WPW10336094		Head, Burner (center)   (Replaces: W10336094)				$ 205.03
4C	WPW10406797		Head, Burner (12.5k) (right Front)   (Replaces: W10406797)				$ 83.62
NI	8019P02660		Clip, Wire-wrap Nylon		Appelez-nous	-
NI	7109P08460		Washer, Fiber		Appelez-nous	-
NI	W10408058		Harness, Spark				$ 69.48
NI	W11172531		Harness, Sensor & Locks			Immediately	$ 107.28
NI	W11172428		Harness, Eol (dofsr)		Appelez-nous	-
NI	W11448060		Harness, Main		Appelez-nous	-
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	7101P02760		Screw, Ground		Appelez-nous	-
