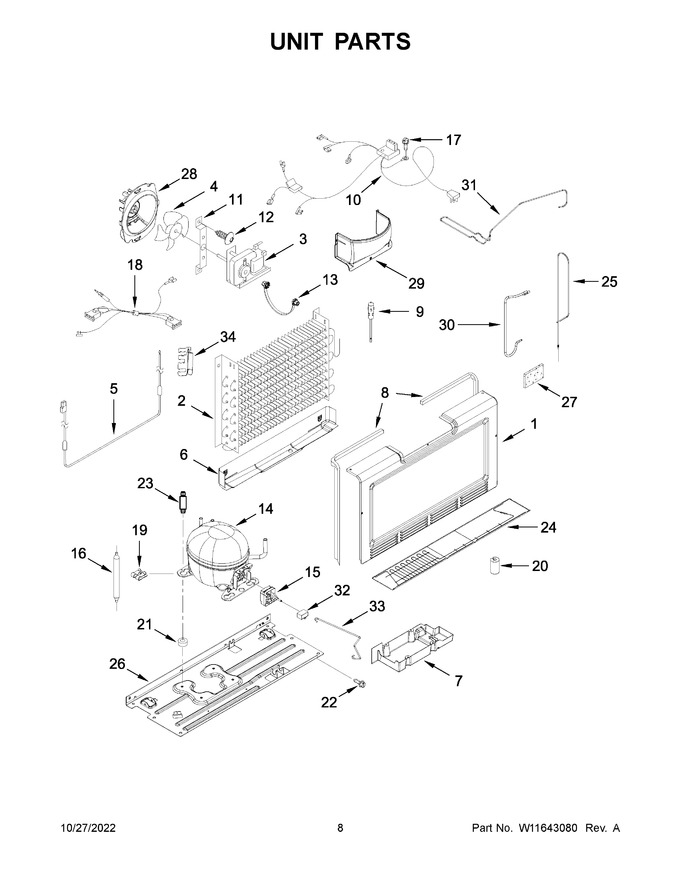

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11551256		Cover, Evaporator   (Replaces: W10574307)				$ 112.16
2	W11572047		Evaporator (also Order The Following Lokring Parts)   (Replaces: W11490402)			Immediately	$ 191.58
3	W11499658		Motor, Fan   (Replaces: W11340536)			Immediately	$ 102.47
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 80.79
6	W11562216		Shield, Heat   (Replaces: W11483529)				$ 41.90
7	W10574291		Pan, Evaporator Drain				$ 107.48
8	WPW10574368		Gasket, Evaporator Cover   (Replaces: W10574305)				$ 7.88
9	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 106.62
10	W11648068		Unit Harness (includes Power Cord)   (Replaces: W11526231)				$ 96.61
11	13058002		Clip, Evaporator Motor				$ 12.66
12	W11233072		Screw   (Replaces: W11546547)			Immediately	$ 13.25
13	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 7.48
14	W11547313		Compressor (also Order The Following Lokring Parts)   (Replaces: W11332031)			Immediately	$ 559.79
15	W11524472		Device, Start   (Replaces: W11359985)			Immediately	$ 29.21
16	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 35.21
17	180257102		Screw		Appelez-nous	-
18	W11741458		Harness, Evaporator Fan   (Replaces: W11435965)				$ 57.53
19	W10697017		Clip, Retaining		Appelez-nous	-
20	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
21	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
22	3400524		Screw   (Replaces: W10142287)				$ 11.95
23	W11572046		Screw   (Replaces: W10720825)		Appelez-nous	-
24	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
25	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
26	W10574278		Pan, Compressor				$ 126.69
27	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 13.29
28	W10574469		Shroud, Evaporator Fan				$ 34.07
29	W10574274		Cover, Evaporator Fan				$ 100.81
30	W11591093		Tube, Suction				$ 57.85
31	W10574478		Tube, Discharge (also Order The Following Lokring Parts)				$ 111.59
32	W11631831		Run Capacitor   (Replaces: W11584490)				$ 58.69
33	W11524474		Strap, Bale   (Replaces: W11379613)		Appelez-nous	-
34	W11452250		Bracket, Evaporator		Appelez-nous	-
14A	W11504420		Evaporator (8/6 Nr Ms 00 (suction Line To Evaporator))			Immediately	$ 23.29
14B	W11504431		7/5 Nr Ms 00 (suction Line To Condenser)			Immediately	$ 24.42
14C	W11506622		Compressor (6.35 Nk Al 00 (charging Tube To Compressor))			Immediately	$ 29.88
14D	W11506635		Tube, Charging (1/4" W/ Schrader Valve)			Immediately	$ 33.33
16A	W11506623		5 Nk Ms 00 (3-way Valve To Drier)			Immediately	$ 19.80
16B	W11504448		5/1.8 Nr Al 00 (capillary Tube To Drier)			Immediately	$ 43.72
2A	W11504450		4/1.8 Nr Ms 00(capillary Tube To Evaporator)			Immediately	$ 41.87
2B	W11504420		Evaporator (8/6 Nr Ms 00 (suction Line To Evaporator))			Immediately	$ 23.29
31A	W11504431		7/5 Nr Ms 00 (suction Line To Condenser)			Immediately	$ 24.42
31B	W11578570		7/4.5 Nr Ms 00 (discharge Tube To Condenser)			Immediately	$ 57.86
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
