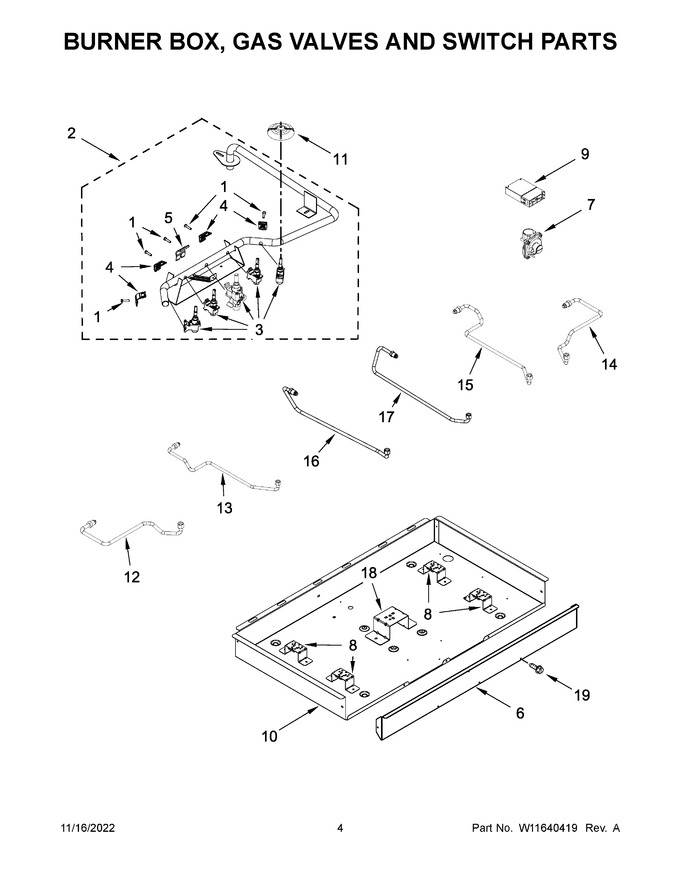

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 10.66 | |||||
| 2 | W10594395 | Assembly, Pipe Manifold |
|
$ 365.90 | |||||
| 3 | W11677628 | Valve, Single (left Front) (Replaces: W10594392) |
|
$ 179.66 | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 68.81 | |||||
| 5 | 8287056 | Bracket, Dual Valve |
|
- | |||||
| 6 | W10721889 | Panel, Front (Replaces: W10614950) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 190.26 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 21.00 | |||||
| 9 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 195.52 | ||||
| 10 | W10728415 | Box, Burner |
|
- | |||||
| 11 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 18.27 | |||||
| 12 | W10566294 | Tubing, Gas Burner (left Front) |
|
- | |||||
| 13 | W10566295 | Tubing, Gas Burner (left Rear) |
|
$ 68.81 | |||||
| 14 | W10566299 | Tubing, Gas Burner (right Front) |
|
$ 66.89 | |||||
| 15 | W10566298 | Tubing, Gas Burner Right Rear) |
|
$ 70.07 | |||||
| 16 | W10566296 | Tubing, Gas Burner (center) |
|
- | |||||
| 17 | W10566297 | Tubing, Gas Burner (simmer) (center) |
|
- | |||||
| 18 | W10594430 | Bracket, Orifice Holder |
|
$ 28.15 | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 3A | W11256503 | Valve, Single (left Rear And Center) (Replaces: W10594391) |
|
Immediately | $ 247.81 | ||||
| 3B | W10859922 | Valve, Single (right Front) (Replaces: W10594393) |
|
$ 72.87 | |||||
| 3C | W11712403 | Valve, Single (right Rear) (Replaces: W10597156) |
|
Immediately | $ 90.31 | ||||
| 3D | W11246817 | Valve, Dual (center) (Replaces: W10594389) |
|
$ 224.51 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- | |||||
| NI | W11561436 | Harness, Main (switch) (Replaces: W10889263) |
|
$ 58.06 | |||||
| NI | W11042467 | Accessories, Spray, Stainless Steel Cleaning |
|
- | |||||
| NI | 9760045 | Seal, Foam |
|
$ 248.24 | |||||
| NI | W10685483 | Griddle |
|
$ 99.79 | |||||
| NI | W10676661 | Kit, Lp Conversion |
|
$ 37.92 | |||||
| NI | W10392003 | Cord, Power |
|
$ 145.50 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | 8270P18860 | Tape, Foam |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 30.01 |
