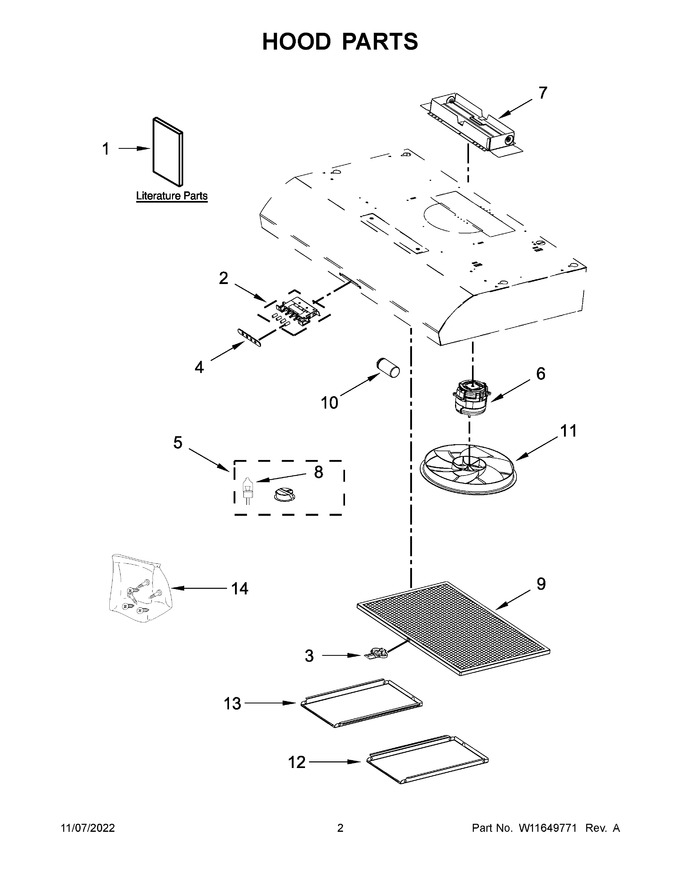

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10646405 | Use And Care Guide |
|
- | |||||
| 2 | WPW10419516 | Control, Buttons (Replaces: W10419516) |
|
$ 269.50 | |||||
| 3 | W10416841 | Latch, Filter |
|
$ 11.96 | |||||
| 4 | W10416838 | Cover, Buttons |
|
$ 27.75 | |||||
| 5 | WPW10638164 | Assembly, Light (Replaces: W10638164) |
|
Immediately | $ 242.24 | ||||
| 6 | W10416839 | Motor |
|
$ 438.05 | |||||
| 7 | W11516461 | Damper (Replaces: W11512452) |
|
Immediately | $ 108.93 | ||||
| 8 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 9 | W11177751 | Filter, Grease (Replaces: W11176974) |
|
Immediately | $ 47.73 | ||||
| 10 | W10862083 | Capacitor |
|
- | |||||
| 11 | W10416840 | Fan |
|
$ 90.15 | |||||
| 12 | W10416843 | Side Panel, Right (stainless 30" Model) |
|
$ 140.76 | |||||
| 13 | W10416844 | Side Panel, Left (stainless 30" Model) |
|
$ 145.69 | |||||
| 14 | W11176975 | Hardware, Installation |
|
$ 110.00 | |||||
| 12A | W10419535 | Side Panel, Right (stainless 36" Model) |
|
$ 111.54 | |||||
| 13A | W10419532 | Side Panel, Left (stainless 36" Model) |
|
$ 151.95 |
