01 - Cover Sheet

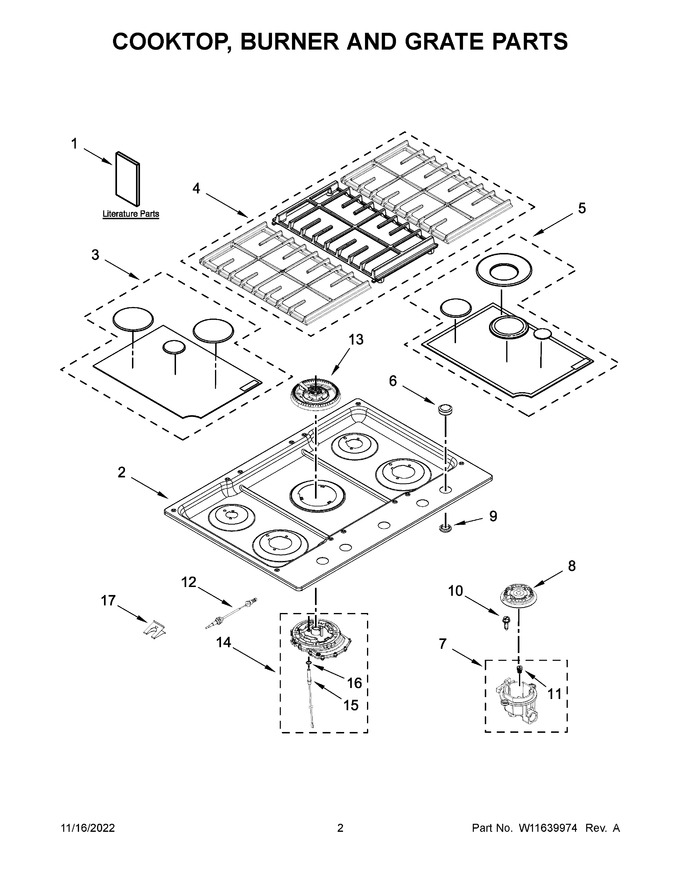

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 2 | W10722084 | Cooktop (stainless) |
|
Immediately | $ 480.77 | ||||
| 3 | W10814915 | Kit, Burner Cap (black) (Replaces: W10617345) |
|
Immediately | $ 93.44 | ||||
| 4 | W11503033 | Grate Kit (includes 3 Grates) (black) (Replaces: W11108276) |
|
$ 348.71 | |||||
| 5 | W10811958 | Kit, Burner Cap (black (includes Melt Cap)) (Replaces: W10635600) |
|
Immediately | $ 162.15 | ||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 124.48 | ||||
| 7 | W10674920 | Holder, Orifice (10k) (left Front And Right Front) |
|
$ 36.41 | |||||
| 8 | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 112.13 | ||||
| 9 | W10853046 | Bezel (stainless) (Replaces: W10593536) |
|
Immediately | $ 67.08 | ||||
| 10 | W11699921 | Screw (Replaces: W10758282) |
|
$ 13.29 | |||||
| 11 | W10674732 | Orifice (10k) (left Front And Right Front) |
|
$ 18.58 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Left Rear, & Right Front) (Replaces: W11439331) |
|
$ 54.74 | |||||
| 13 | W10836409 | Spreader, Burner (center) (Replaces: W10808715) |
|
Immediately | $ 123.25 | ||||
| 14 | W10625853 | Assembly, Burner Base (17k) |
|
$ 253.41 | |||||
| 15 | W11610134 | Electrode, Burner (center) (Replaces: W10657994) |
|
Immediately | $ 28.12 | ||||
| 16 | W10416057 | O-ring |
|
$ 70.32 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 11A | W10151353 | Orifice (left Rear) |
|
- | |||||
| 11B | W11727825 | Orifice (right Rear) (Replaces: W10674728) |
|
$ 29.90 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W11439332) |
|
Immediately | $ 54.80 | ||||
| 1A | W11468901 | Owner's Manual |
|
- | |||||
| 1B | W11466943 | Quick Start Guide |
|
- | |||||
| 7A | W10674918 | Holder, Orifice (6k) (left Rear) |
|
Immediately | $ 29.42 | ||||
| 7B | W10674919 | Holder, Orifice (7k) (right Rear) |
|
$ 31.58 | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 90.22 | |||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- | |||||
| NI | W10617403 | Insulation, Cooktop |
|
$ 190.99 | |||||
| NI | W10392003 | Cord, Power |
|
$ 145.50 | |||||
| NI | W11561446 | Harness, Main (switch) (Replaces: W10889266) |
|
$ 57.56 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 30.01 | |||||
| NI | 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W10853432 | Kit, Lp Conversion (Replaces: W10676662) |
|
$ 77.91 |
