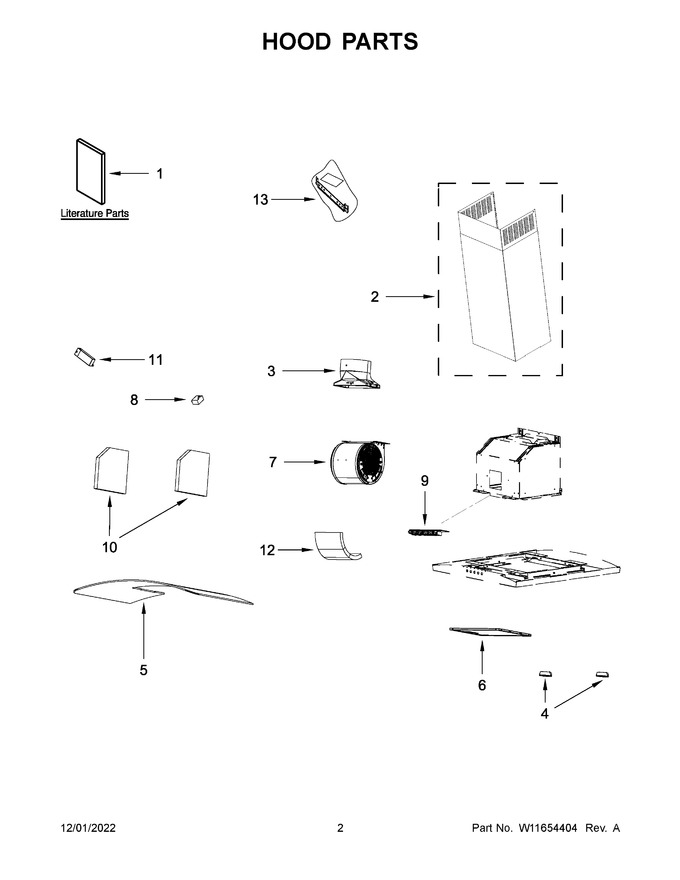

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11134241 | Use And Care Guide |
|
- | |||||
| 2 | W11416331 | Chimney, Upper And Lower |
|
$ 439.99 | |||||
| 3 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 4 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 5 | WPW10313843 | Glass (30" Model Only) (Replaces: W10313843) |
|
Immediately | $ 304.98 | ||||
| 6 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 7 | W10894803 | Motor, Fan |
|
$ 338.56 | |||||
| 8 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 9 | W10895848 | Control, Electronic (Replaces: W10894876) |
|
$ 310.73 | |||||
| 10 | W11848867 | Insulation, Side (Replaces: W10717244) |
|
$ 81.32 | |||||
| 11 | W10895844 | Driver, Led (Replaces: W10894801) |
|
$ 219.84 | |||||
| 12 | W11688852 | Insulation, Motor (Replaces: W10894814) |
|
$ 71.89 | |||||
| 13 | W10894816 | Hardware, Installation |
|
$ 92.24 | |||||
| 5A | WPW10313844 | Glass (36" Model Only) (Replaces: W10313844) |
|
$ 318.10 |
