New Model Search:

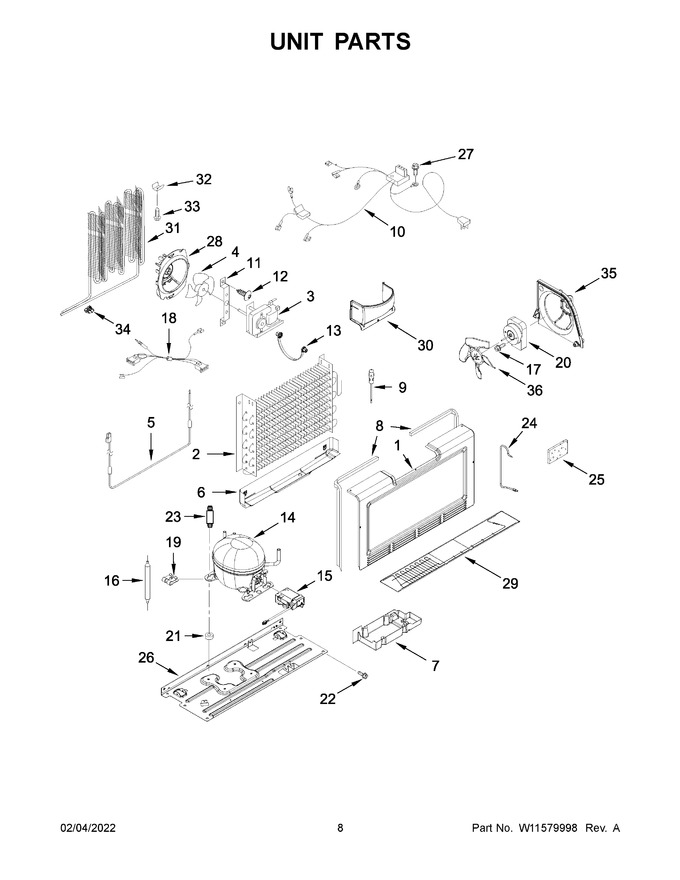

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 112.16 | |||||
| 2 | W11572047 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11490402) |
|
Immediately | $ 191.58 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 102.47 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 5 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 80.79 | ||||
| 6 | W11562216 | Shield, Heat (Replaces: W11483529) |
|
$ 41.90 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 107.48 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 7.88 | |||||
| 9 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 10 | W11454744 | Unit Harness (includes Power Cord) |
|
$ 99.74 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: W11546547) |
|
Immediately | $ 13.25 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.48 | |||||
| 14 | W11578209 | Compressor (also Order The Following Lokring Parts) (Replaces: W11376833) |
|
Immediately | $ 644.34 | ||||
| 15 | W11708429 | Assembly, Inverter Box (Replaces: W11461099) |
|
Immediately | $ 446.68 | ||||
| 16 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 17 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 18 | W11741458 | Harness, Evaporator Fan (Replaces: W11435965) |
|
$ 57.53 | |||||
| 19 | W10697017 | Clip, Retaining |
|
- | |||||
| 20 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 203.92 | ||||
| 21 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 23 | W11572046 | Screw (Replaces: W10720825) |
|
- | |||||
| 24 | W11501825 | Tube, Suction |
|
$ 63.17 | |||||
| 25 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 26 | W10574278 | Pan, Compressor |
|
$ 126.69 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 34.07 | |||||
| 29 | NP | Roller (not Serviced) |
|
- | |||||
| 30 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| 31 | W11507065 | Condenser (also Order The Following Lokring Parts) (Replaces: W11330057) |
|
Immediately | $ 260.39 | ||||
| 32 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 33 | W11544659 | Screw (Replaces: W10142294) |
|
$ 12.92 | |||||
| 34 | W10815861 | Clip, Bottom Cover |
|
$ 14.22 | |||||
| 35 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 36 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 14A | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 23.29 | ||||
| 14B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 24.42 | ||||
| 14C | W11506622 | 6.35 Nk Al 00 Charging Tube To Compressor |
|
Immediately | $ 29.88 | ||||
| 14D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 33.33 | ||||
| 16A | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 19.80 | ||||
| 16B | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Drier) |
|
Immediately | $ 43.72 | ||||
| 2A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 41.87 | ||||
| 2B | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 23.29 | ||||
| 31A | W11578570 | 7/4.5 Nr Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 57.86 | ||||
| 31B | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 19.80 | ||||
| NI | NP | Roller (not Serviced) |
|
- |
