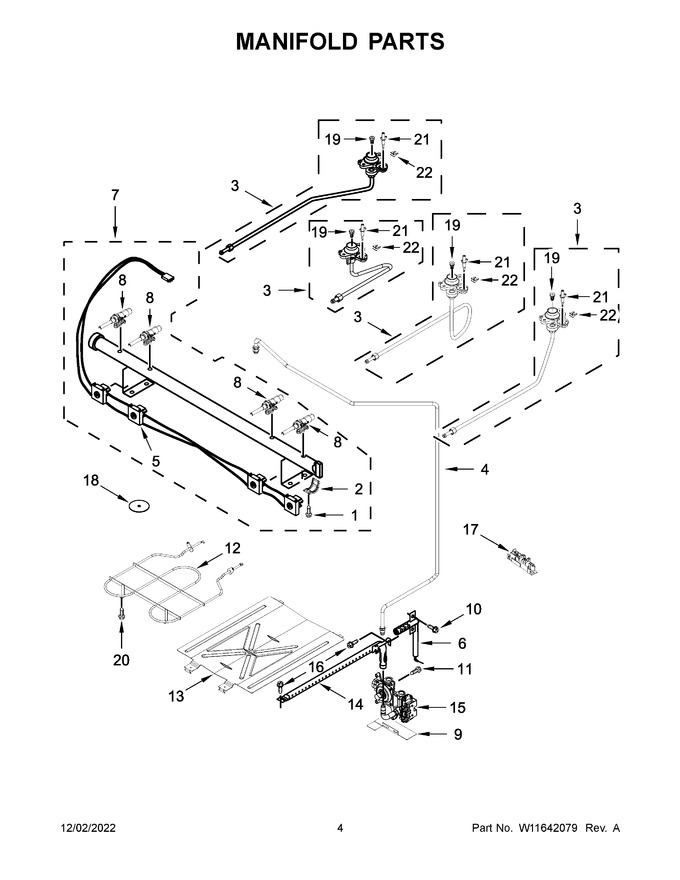

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.85 | |||||
| 2 | W10949105 | Bracket, Saddle Valve |
|
$ 20.48 | |||||
| 3 | W11035644 | Assembly, Orifice Holder (15k) (left Front) (Replaces: W10827775) |
|
$ 90.12 | |||||
| 4 | W10804030 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | W11537738 | Harness, Switch |
|
- | |||||
| 6 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 78.97 | ||||
| 7 | W11512354 | Assembly, Manifold |
|
$ 337.25 | |||||
| 8 | W11511835 | Valve, Gas (left Rear) |
|
$ 87.04 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 11 | W11684512 | Screw (Replaces: 3400080) |
|
$ 13.33 | |||||
| 12 | W11847084 | Element, Broiler (Replaces: W10714060) |
|
$ 106.10 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | W10898290 | Regulator (Replaces: W10818355) |
|
Immediately | $ 354.29 | ||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 17 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 290.17 | ||||
| 18 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 18.27 | |||||
| 19 | W10849717 | Orifice (15k) (left Front, Right Front) |
|
Immediately | $ 84.11 | ||||
| 20 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 21 | W11661929 | Electrode, Burner (left Front) (Replaces: W10669526) |
|
Immediately | $ 45.19 | ||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 19A | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 84.11 | |||||
| 19B | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 21A | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 43.57 | |||||
| 21B | W11643126 | Electrode, Burner (right Front) (Replaces: W10669524) |
|
Immediately | $ 47.89 | ||||
| 21C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 43.52 | |||||
| 3A | W10827780 | Assembly, Orifice Holder (9.5k) (left Rear) |
|
$ 97.21 | |||||
| 3B | W10827777 | Assembly, Orifice Holder (15k) (right Front) |
|
$ 97.18 | |||||
| 3C | W10827779 | Assembly, Orifice Holder (5k) (right Rear) |
|
$ 97.21 | |||||
| 8A | W11511834 | Valve, Gas (left Front And Right Front) |
|
$ 86.80 | |||||
| 8B | W11511833 | Valve, Gas (right Rear) |
|
Immediately | $ 87.04 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11699925 | Spuds, Lp Gas (Replaces: W10838118) |
|
$ 47.74 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | |||||
| NI | W11763416 | Orifice, Lp Bake (Replaces: W10838304) |
|
$ 46.90 |
