Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13023887SQ Door, Refrigerator (stainless Steel-lh) Appelez-nous -
1 13023886SQ Door, Refrigerator (stainless Steel-rh) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 WP67001021 Bucket, Medium (2)   (Replaces: 12557204V) Special Order $ 76.46

5 67001141 Bucket, Small (2)   (Replaces: 12557202) In-Stock Immediately $ 71.02

5 12737802 Bucket, Tall (1) Appelez-nous -
8 WPW10436245 Gasket, Door (black)   (Replaces: W10164031) Special Order $ 326.12

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 178.40

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 13.28

12 WP2213265 Nameplate   (Replaces: 2255121) In-Stock Immediately $ 83.86

13 12690501 Retainer, Ref Door Special Order $ 41.75

14 67004978 Bushing (4) (black)   (Replaces: 10961006B) Special Order $ 19.89

15 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 81.29

16 WP12992902 Screw-flat-(2)   (Replaces: 12992902) Special Order $ 10.72


    View Diagram in Separate Window     Print Icon   Print Part List

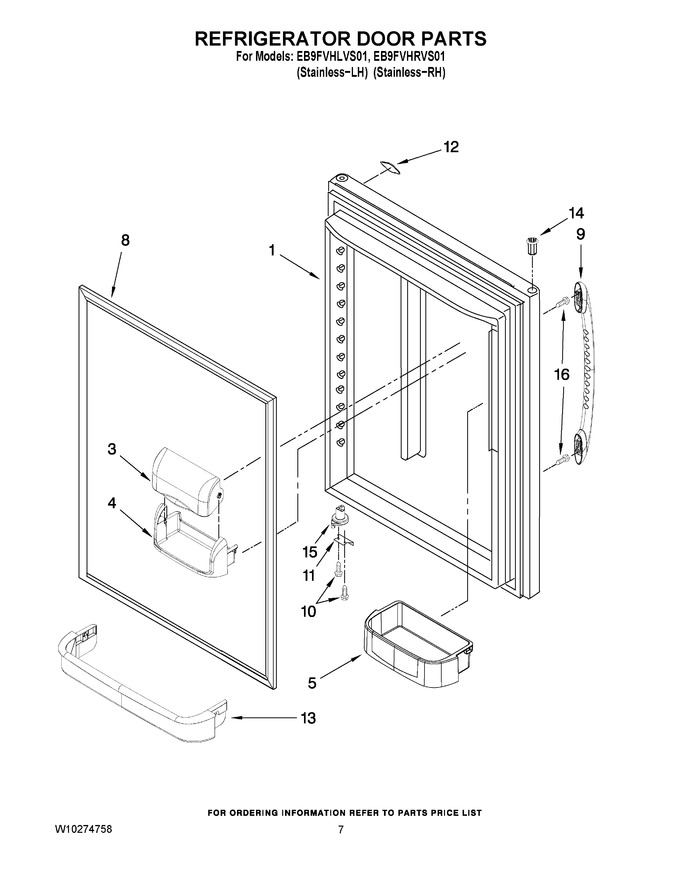

Diagram for EB9FVHLVS01
