New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 NP Following Parts Not Illustrated Appelez-nous -
2 W10714136 Trim, Cabinet (side) Left Hand (black) Special Order $ 327.83

3 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.25

4 W11623285 Trim, Cabinet (top) Left Hand (charcoal Sparkle)   (Replaces: W11577756) Appelez-nous -
5 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25

2A W10606846 Trim, Cabinet (side) Right Hand (black) Special Order $ 327.83


    View Diagram in Separate Window     Print Icon   Print Part List

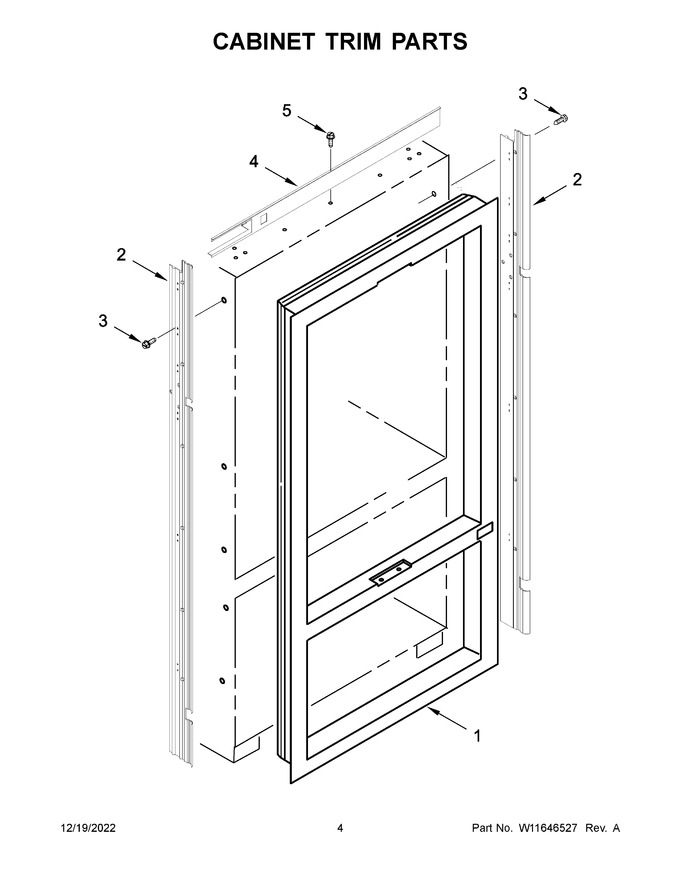

Diagram for JB36NXFXLE05
