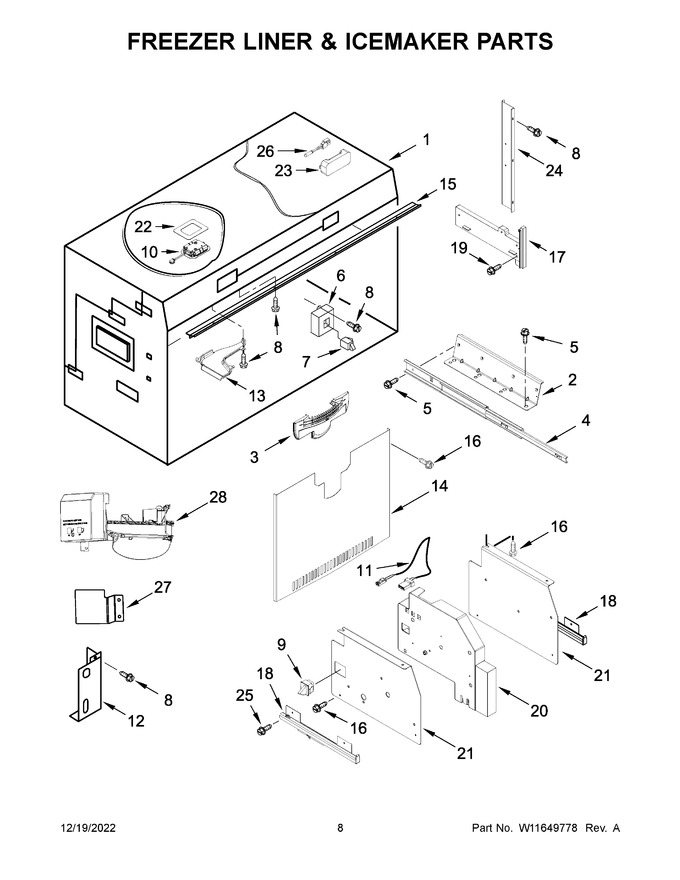

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W10744327 | Support, Drawer Slide (grey) |
|
- | |||||
| 3 | W10541687 | Grille, Freezer Air (grey) |
|
$ 72.61 | |||||
| 4 | W11650036 | Slide, Freezer Basket (Replaces: W11415033) |
|
Immediately | $ 327.29 | ||||
| 5 | W10061370 | Screw |
|
$ 8.19 | |||||
| 6 | W10606833 | Cover, Light Switch (grey) |
|
- | |||||
| 7 | W11670534 | Switch, Light (Replaces: W11520473) |
|
Immediately | $ 21.02 | ||||
| 8 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 9 | W11289496 | Switch, Light (Replaces: W10847850) |
|
Immediately | $ 34.84 | ||||
| 10 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 24.31 | ||||
| 11 | W10568445 | Assembly, Ice Bucket Switch Wire |
|
$ 67.30 | |||||
| 12 | W11575966 | Cover, Icemaker Wiring |
|
- | |||||
| 13 | W10552980 | Duct, Air Flow |
|
- | |||||
| 14 | W11523760 | Cover, Evaporator (charcoal Sparkle) |
|
- | |||||
| 15 | W10710400 | Assembly, Air Deflector |
|
$ 147.59 | |||||
| 16 | WPW10001160 | Screw (stainless) (Replaces: W10001160) |
|
$ 9.30 | |||||
| 17 | W10664385 | Spacer, Drawer Left Hand (grey) |
|
- | |||||
| 18 | 2306117 | Slide, Freezer Bin (left Hand) |
|
$ 250.80 | |||||
| 19 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.13 | |||||
| 20 | W10647421 | Divider, Freezer (grey) |
|
$ 103.04 | |||||
| 21 | W10600630 | Support, Slide (left Hand) |
|
$ 134.74 | |||||
| 22 | W10672548 | Shim, Led |
|
$ 19.00 | |||||
| 23 | W10609678 | Cover, Thermistor |
|
$ 35.27 | |||||
| 24 | W10538780 | Assembly, Evaporator Cover Rail |
|
$ 152.94 | |||||
| 25 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.13 | |||||
| 26 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 30.24 | ||||
| 27 | W11639152 | Extension, Icemaker Wiring Cover |
|
- | |||||
| 28 | W11744241 | Assembly, Icemaker (Replaces: W11322220) |
|
Immediately | $ 382.54 | ||||
| 17A | W10664383 | Spacer, Drawer Right Hand (grey) |
|
- | |||||
| 18A | 2306116 | Slide, Freezer Bin (right Hand) |
|
$ 278.06 | |||||
| 21A | W10600626 | Support, Slide (right Hand) |
|
$ 94.22 |
