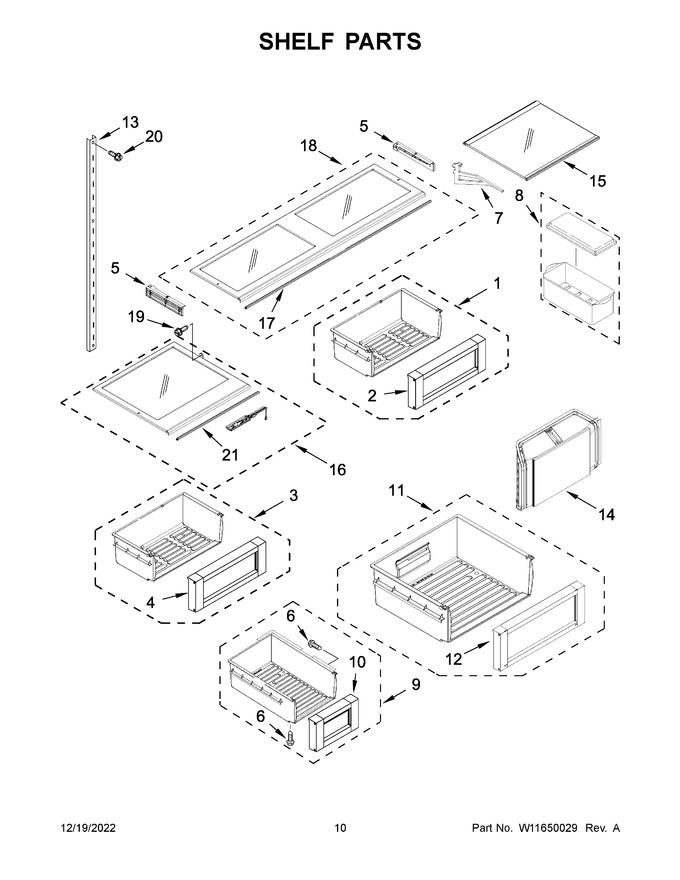

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10529501 | Assembly, Crisper Pan |
|
$ 414.52 | |||||
| 2 | W10529479 | Assembly, Crisper Pan Front |
|
$ 346.10 | |||||
| 3 | W10529506 | Assembly, Deli Pan |
|
$ 308.08 | |||||
| 4 | W10529487 | Assembly, Deli Pan Front |
|
- | |||||
| 5 | W10569842 | Support, Crisper Cover Left Hand (grey) |
|
- | |||||
| 6 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 7 | W11690161 | Sidearm, Shelf (Replaces: W10605575) |
|
Immediately | $ 46.48 | ||||
| 8 | WP2221071A | Assembly, Egg Bin (Replaces: 2221071) |
|
$ 23.21 | |||||
| 9 | W10626679 | Assembly, Ice Pan |
|
$ 340.98 | |||||
| 10 | W10626676 | Assembly, Ice Pan (front) |
|
- | |||||
| 11 | W10626681 | Assembly, Freezer Pan |
|
$ 343.87 | |||||
| 12 | W10626678 | Assembly, Front Pan |
|
$ 344.15 | |||||
| 13 | W10743255 | Ladder, Shelf Left Hand (black) |
|
- | |||||
| 14 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 15.44 | ||||
| 15 | WPW10198701 | Assembly, Shelf (Replaces: W10198701) |
|
$ 219.65 | |||||
| 16 | W10559654 | Cover, Deli Bin (left Hand) |
|
$ 306.39 | |||||
| 17 | W10709357 | Gasket Cover, Front (crisper) (grey) |
|
- | |||||
| 18 | WPW10569917 | Cover, Crisper (Replaces: W10569917) |
|
$ 268.02 | |||||
| 19 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 20 | W10678207 | Screw (Replaces: W10832438) |
|
$ 14.79 | |||||
| 21 | W10709358 | Gasket Cover, Front (deli) (grey) |
|
- | |||||
| 13A | W10743254 | Ladder, Shelf Right Hand (black) |
|
- | |||||
| 13B | W10743230 | Ladder, Shelf Center (black) |
|
- | |||||
| 16A | W10559655 | Cover, Deli Bin (right Hand) |
|
$ 297.75 | |||||
| 5A | W10569839 | Support, Crisper Cover Right Hand (grey) |
|
- |
