SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Cabinet Trim Parts
03 - Cabinet Trim Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner And Icemaker Parts
05 - Freezer Liner And Icemaker Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door And Basket Parts
08 - Freezer Door And Basket Parts

Diagram for 09 - Top Grille And Unit Cover Parts
09 - Top Grille And Unit Cover Parts

Diagram for 10 - Upper Unit Parts
10 - Upper Unit Parts

Diagram for 11 - Lower Unit And Tube Parts
11 - Lower Unit And Tube Parts

Diagram for 12 - Optional Parts
12 - Optional Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11735285 Cover, Unit   (Replaces: W10545068) In-Stock Immediately $ 185.37

2 2215910 Grommet, Flexible Special Order $ 84.89

3 2256466 Panel, Unit Back Special Order $ 294.50

4 W11435372 Cover, Unit Front In-Stock Immediately $ 42.89

5 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.68

6 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

7 W11244166 Insulation, Unit Back Panel Special Order $ 71.09

8 W11356980 Cover, Safety Switch Appelez-nous -
9 W10646967 Damper, Mount Special Order $ 65.18

10 W10770988 Damper, Door Special Order $ 183.02

11 W11251734 Strike, Damper   (Replaces: W10646961) Special Order $ 21.44


    View Diagram in Separate Window     Print Icon   Print Part List

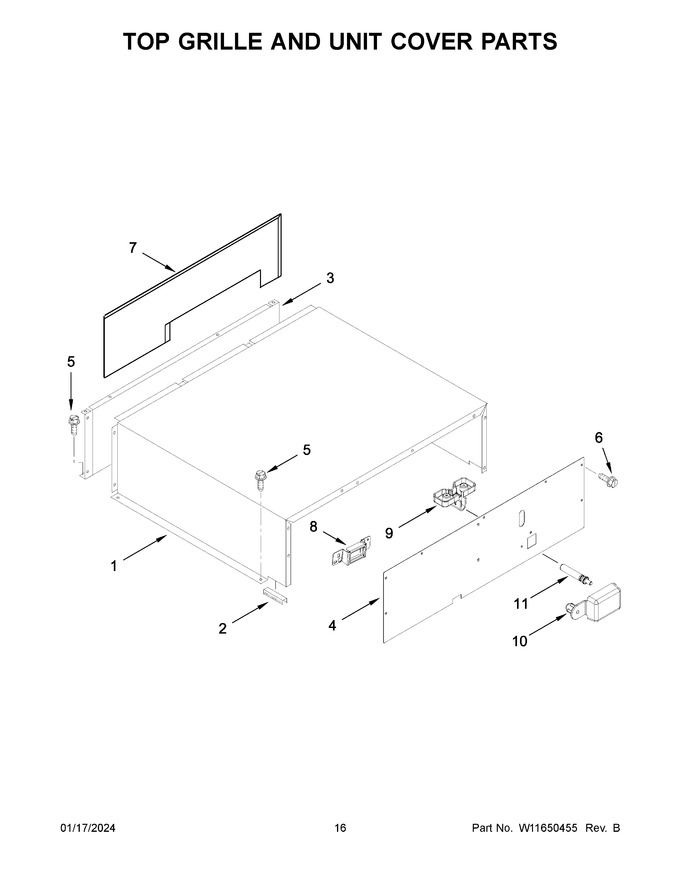

Diagram for JF36NXFXDE05
