SELECT A DIAGRAM

01 - Cover Sheet

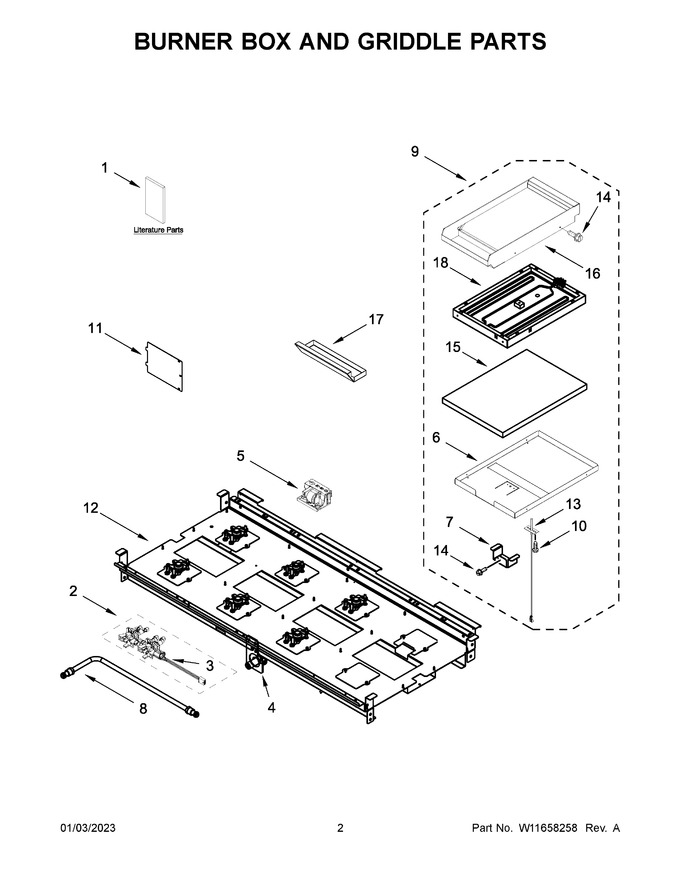

02 - Burner Box And Griddle Parts


03 - Cooktop, Burner And Grate Parts


04 - Chassis Parts (48 In)


05 - Oven Parts (30 In)


06 - Oven Parts (18 In)


07 - Venting Parts


08 - Oven Door Parts (30 In)


09 - Oven Door Parts (18 In)


10 - Internal Oven Parts (30 In)


11 - Internal Oven Parts (18 In)


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11508863		Use And Care Guide		Appelez-nous	-
2	W11381267		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11183720)				$ 323.86
3	W11344433		Switch, Harness   (Replaces: W10903728)				$ 172.40
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 71.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 73.44
6	W11330430		Tray, Griddle Insulation		Appelez-nous	-
7	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
8	W11397967		Tube, Manifold Supply (left)   (Replaces: W10892809)				$ 169.18
9	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,392.32
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
11	W10115843		Cover, Ignition		Appelez-nous	-
12	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
13	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 205.63
14	W10162096		Screw				$ 19.71
15	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
16	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
17	W10276497		Tray, Griddle Drip				$ 363.63
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 332.53
1A	W11508887		Installation Instructions		Appelez-nous	-
1B	W11184759		Guide, Internet Connectivity		Appelez-nous	-
1C	W11364680		Guide, Quick Start		Appelez-nous	-
1D	W11575704		Wiring Diagram (cooktop)		Appelez-nous	-
1E	W11565468		Tech Sheet		Appelez-nous	-
2A	W11381269		Assembly, Valve Manifold (left Center Front And Left Center Rear)   (Replaces: W11036612)				$ 310.10
2B	W11378578		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10892994)			Immediately	$ 210.66
8A	W11397968		Tube, Manifold Supply (left Center)   (Replaces: W10892804)		Appelez-nous	-
8B	W11397969		Tube, Manifold Supply (right Center)   (Replaces: W10892805)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
NI	W11448064		Harness, Main (48 In)				$ 402.31
NI	W11446239		Ignitor Wire, Wire-electrode Broil   (Replaces: W11311197)				$ 21.57
NI	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 19.04
NI	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 118.67
NI	W11317788		Harness, Cooktop   (Replaces: W11200329)			Immediately	$ 185.46
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 105.08
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 102.35
NI	W10624584		Cord, Power				$ 170.61
NI	W10780278		Harness, Door Lock			Immediately	$ 86.28
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	4450800		Screw, Grounding				$ 12.12
NI	W11502161		Kit, Lp Conversion   (Replaces: W11238042)			Immediately	$ 71.29

    View Diagram in Separate Window       Print Part List
