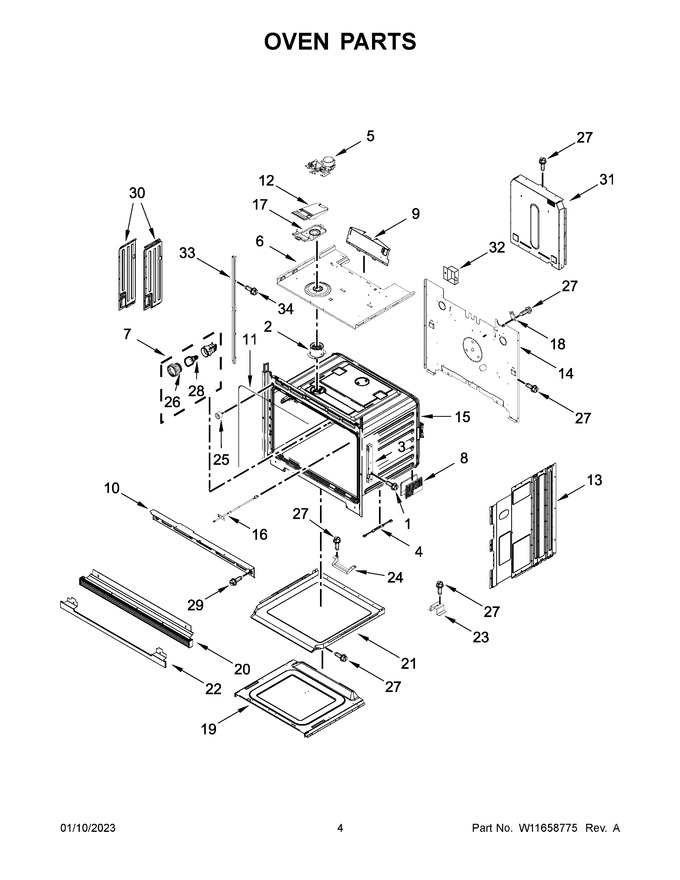

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 22.99
3	W11752201		Receiver, Hinge   (Replaces: W11100732)				$ 41.90
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 16.33
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 62.87
6	W11244456		Top, Chassis		Appelez-nous	-
7	W11325541		Assembly, Light   (Replaces: W11246615)				$ 94.88
8	W11598170		Foot, Base   (Replaces: W11245118)				$ 26.14
9	W10904163		Deflector, Blower			Immediately	$ 152.81
10	W11334858		Vent, Top 27 In		Appelez-nous	-
11	W11608109		Gasket, Cavity				$ 63.87
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 72.89
14	NP		Following Parts Not Illustrated		Appelez-nous	-
15	NP		Following Parts Not Illustrated		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 37.58
17	W11256423		Base, Vent Exhaust		Appelez-nous	-
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
19	W11598139		Base, Chassis   (Replaces: W11244454)		Appelez-nous	-
20	W11598189		Assembly, Bottom Vent (stainless)   (Replaces: W11369886)				$ 226.41
21	W11244446		Duct, Bottom Chassis				$ 63.23
22	W11712432		Trim, Bottom Vent (black)   (Replaces: W11356754)				$ 80.96
23	W11135135		Support, Air Channel				$ 32.54
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 34.97
25	W11598125		Bumper & Screw   (Replaces: W11166315)				$ 21.03
26	W11450856		Lens, Light   (Replaces: W11297361)				$ 20.06
27	7101P42660		Screw		Appelez-nous	-
28	W11454079		Bulb, Light   (Replaces: W11297362)				$ 82.07
29	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.80
30	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 66.65
31	W11165250		Duct, Chassis Back				$ 68.69
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11235463		Cover, Side Trim (black (left))				$ 79.89
34	W11602623		Screw   (Replaces: W11404000)				$ 12.81
30A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 66.65
33A	W11235462		Cover, Side Trim (black (right))				$ 79.89
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11244475		Insulation, Back		Appelez-nous	-
NI	W11688568		Insulation, Wrap   (Replaces: W11244474)		Appelez-nous	-
