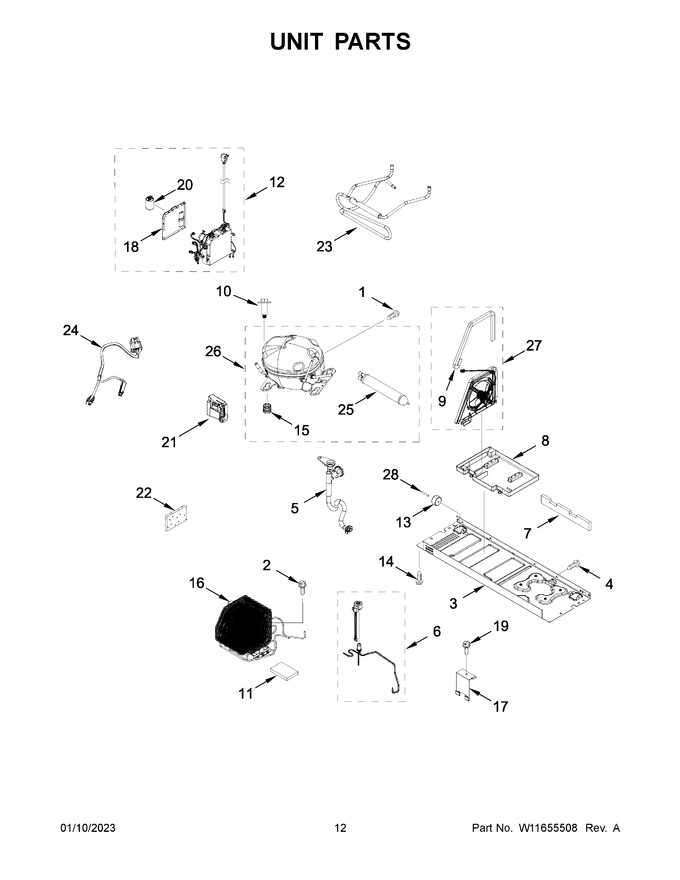

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 2 | W10820084 | Screw |
|
- | |||||
| 3 | W11449163 | Baseplate |
|
- | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 5 | W11745091 | Assembly, Drain Extension (Replaces: W10860180) |
|
$ 69.59 | |||||
| 6 | W11574310 | Assembly, 3 Way Valve (also Order The Following Lokring Parts) (Replaces: W11507092) |
|
$ 102.98 | |||||
| 7 | W11706809 | Pad, Sound (Replaces: W11492318) |
|
$ 63.66 | |||||
| 8 | W11490557 | Tray, Evaporator |
|
$ 103.03 | |||||
| 9 | W10683708 | Gasket, Condenser Fan |
|
- | |||||
| 10 | W11417341 | Screw |
|
$ 12.66 | |||||
| 11 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 12 | W11567409 | Assembly, Orion Box(include Wiring Harness For Compressor And Power Cord) (Replaces: W11434429) |
|
Immediately | $ 442.09 | ||||
| 13 | W10774846 | Roller |
|
$ 81.68 | |||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 16 | W11567329 | Condenser (also Order The Following Lokring Parts) (Replaces: W11485773) |
|
$ 208.43 | |||||
| 17 | W10391376 | Bracket, Valve |
|
$ 31.53 | |||||
| 18 | W11198954 | Cover, Housing |
|
- | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 20 | W10738041 | Filter, Emi |
|
$ 47.08 | |||||
| 21 | W11578028 | Assembly, Inverter Box (Replaces: W11515300) |
|
Immediately | $ 352.44 | ||||
| 22 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 23 | W11646687 | Assembly, Suction Tube (Replaces: W11599667) |
|
$ 94.01 | |||||
| 24 | W11440595 | Harness, Unit (condenser Fan) |
|
Immediately | $ 100.46 | ||||
| 25 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 26 | W11578205 | Compressor (also Order The Following Lokring Parts) (Replaces: W11515413) |
|
Immediately | $ 549.13 | ||||
| 27 | W11574308 | Assembly, Condenser Fan (Replaces: W11509191) |
|
Immediately | $ 209.87 | ||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 16A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| 16B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 24.42 | ||||
| 25A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| 25B | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 19.80 | ||||
| 26A | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 24.42 | ||||
| 26B | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 23.30 | ||||
| 26C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 19.80 | ||||
| 26D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 33.33 | ||||
| 6A | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 18.85 | ||||
| 6B | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 18.85 | ||||
| 6C | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- |
