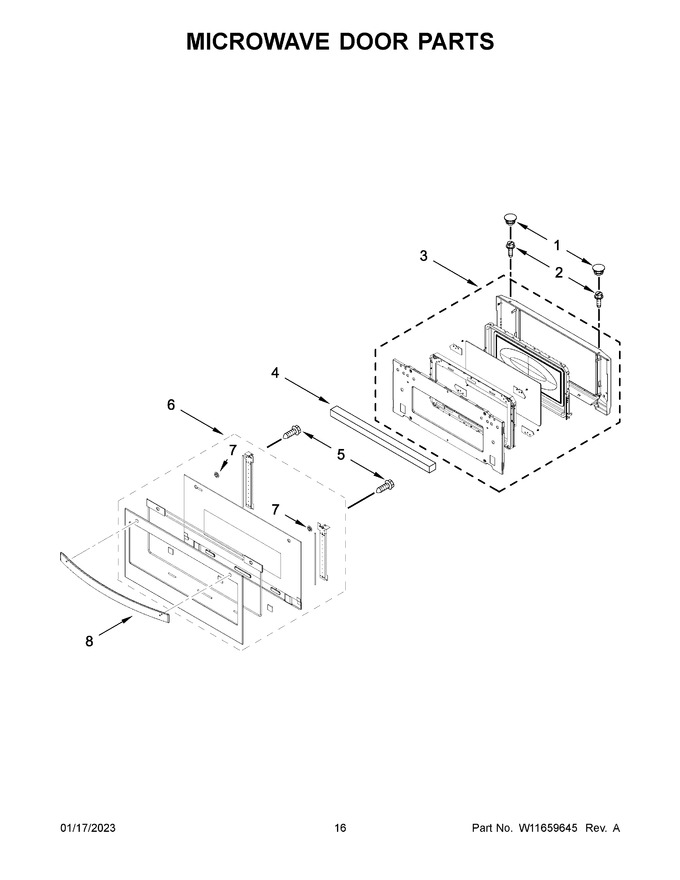

09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.11
2	7101P33860		Screw		Appelez-nous	-
3	W11639552		Inner Door Assembly   (Replaces: W11328749)				$ 535.73
4	W10359769		Foam, Door Handle				$ 13.28
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 13.28
6	W11600329		Door Assembly (black)   (Replaces: W11300579)		Appelez-nous	-
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
8	W11115278		Handle, Door (black)   (Replaces: W11022641)				$ 170.02
6A	W11600335		Door Assembly (white)   (Replaces: W11300580)		Appelez-nous	-
8A	W11200667		Handle, Door (white)   (Replaces: W11022642)		Appelez-nous	-
