01 - Cover Sheet


02 - Top And Cabinet Parts

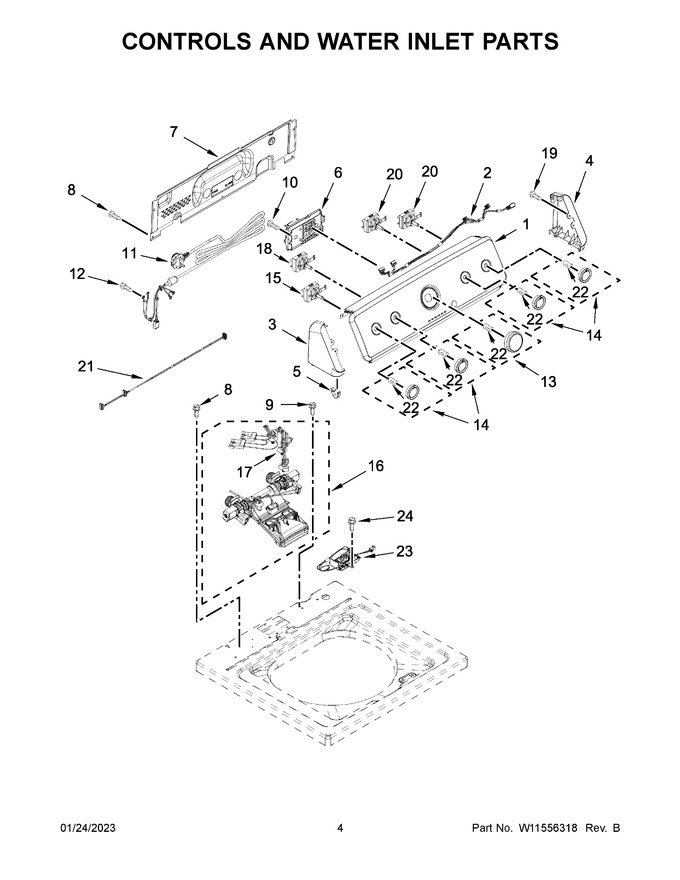

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11027113		Panel, Console   (Replaces: W10774530)		Appelez-nous	-
2	W10694685		Harness, Upper				$ 171.07
3	W10193826		End Cap (left) (white)		Appelez-nous	-
4	W10193823		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11401122		Control Unit Assembly, Machine And Motor   (Replaces: W11372894)		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	W11369863		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11837899		Knob, Timer (grey)   (Replaces: W10558463)			Immediately	$ 16.95
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
16	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
17	W10917060		Harness, Valve		Appelez-nous	-
18	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
21	W10694669		Harness, Jumper				$ 76.59
22	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
23	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
24	W11568617		Screw   (Replaces: W10567155)				$ 13.25
