SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

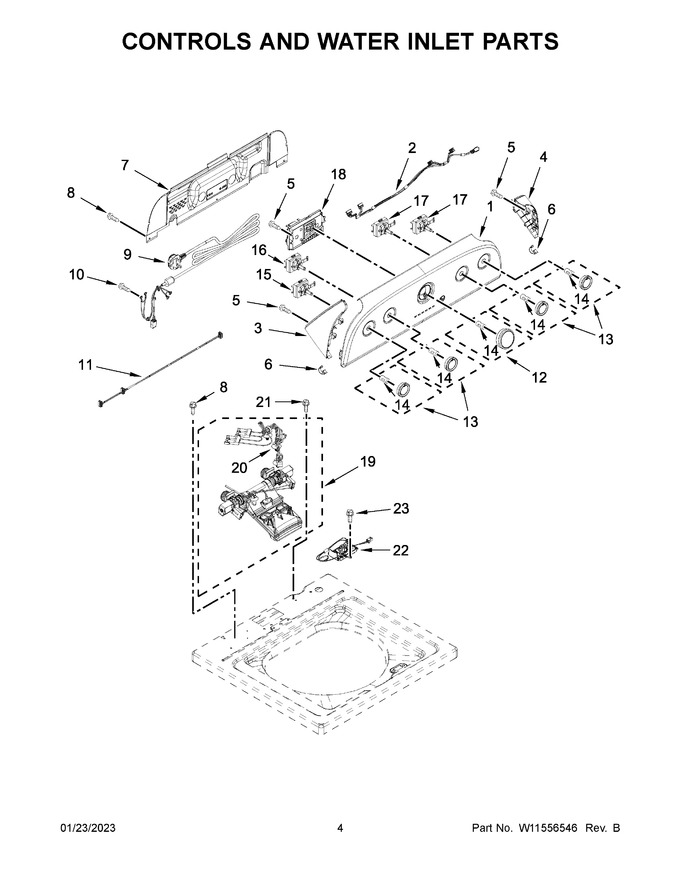

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099771		Panel, Console   (Replaces: W10881776)		Appelez-nous	-
2	W10786100		Harness, Jumper				$ 170.98
3	W10806902		End Cap (left) (white)		Appelez-nous	-
4	W10806901		End Cap (right) (white)		Appelez-nous	-
5	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	W10552335		Panel, Console Rear Cover				$ 308.85
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	W11369863		Cord, Power		Appelez-nous	-
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W11211519		Harness, Upper   (Replaces: W10694680)				$ 166.32
12	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
13	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
14	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
16	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
17	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
18	W11417465		Control Unit Assembly, Machine And Motor   (Replaces: W11372889)		Appelez-nous	-
19	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
20	W10917060		Harness, Valve		Appelez-nous	-
21	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
22	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
23	W11568617		Screw   (Replaces: W10567155)				$ 13.25

    View Diagram in Separate Window       Print Part List
