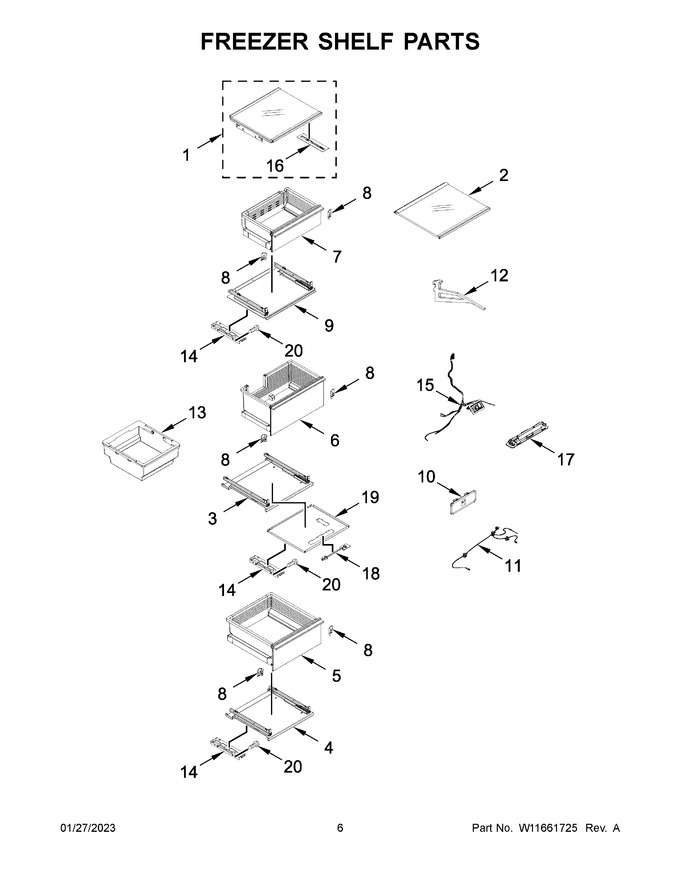

04 - Freezer Shelf Parts


05 - Freezer Door Parts


06 - Upper Unit Parts


07 - Lower Unit And Tube Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245156		Assembly, Deli Shelf   (Replaces: W10824594)				$ 415.34
2	W11245159		Assembly, Shelf   (Replaces: W11032682)				$ 263.62
3	W11245161		Assembly, Upper Crisper Slide Support   (Replaces: W10824120)		Appelez-nous	-
4	W11245184		Assembly, Lower Crisper Slide Support   (Replaces: W10821601)		Appelez-nous	-
5	W11245185		Assembly, Crisper   (Replaces: W11032271)		Appelez-nous	-
6	W11245187		Assembly, Ice Crisper   (Replaces: W10816829)			Immediately	$ 389.19
7	W11245190		Assembly, Deli   (Replaces: W10816762)		Appelez-nous	-
8	W11235126		Clip, Retainer (left Hand)   (Replaces: W10856559)		Appelez-nous	-
9	W11245199		Assembly, Deli Slide Support   (Replaces: W10824233)		Appelez-nous	-
10	W11234857		Housing, Crisper Thermistor   (Replaces: W11047771)				$ 221.67
11	W11234859		Harness, Crisper Led (includes Thermistor)   (Replaces: W10909590)				$ 137.17
12	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 46.48
13	W11234515		Assembly, Ice Bin   (Replaces: W10875428)				$ 280.14
14	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
15	W11299625		Harness, Mullion   (Replaces: W11238953)				$ 133.30
16	W11265008		Thermistor (includes Cover)			Immediately	$ 116.82
17	W11233384		Assemby, Light Strip   (Replaces: W10914639)			Immediately	$ 185.30
18	W11234552		Light, Led   (Replaces: W10903460)		Appelez-nous	-
19	W11300486		Plate, Crisper Support Led   (Replaces: W10902248)		Appelez-nous	-
20	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 13.28
8A	W11235128		Clip, Retainer (right Hand)   (Replaces: W10856558)		Appelez-nous	-
