SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts

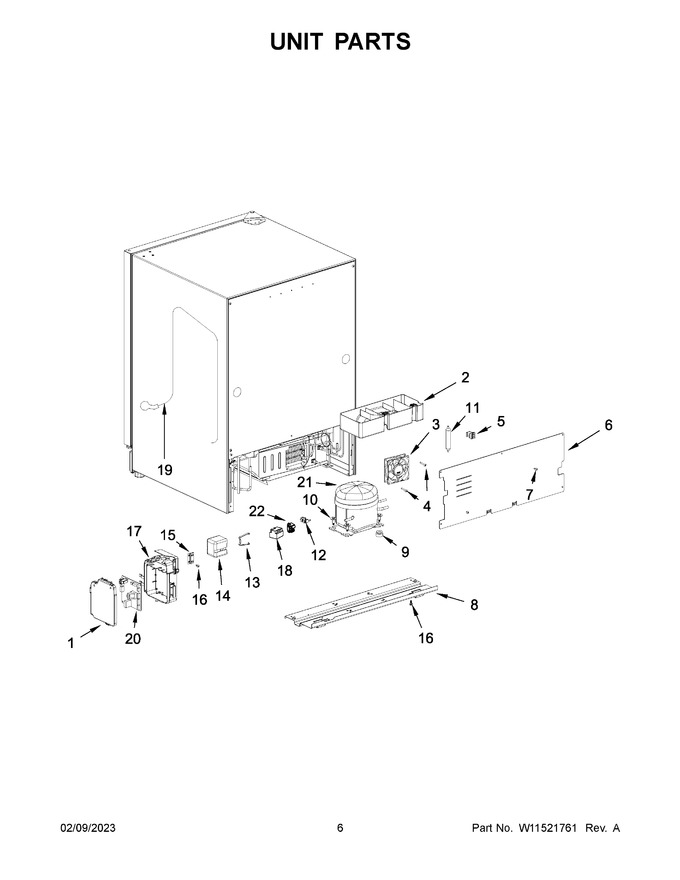

04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11313206		Cover, Pcb				$ 73.67
2	W11360241		Water Pan, Evaporator		Appelez-nous	-
3	W11266081		Assembly, Fan Motor   (Replaces: W11265584)				$ 194.89
4	W11371341		Screw		Appelez-nous	-
5	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
6	W11264703		Cover, Rear		Appelez-nous	-
7	W11371097		Screw		Appelez-nous	-
8	W11265575		Brace		Appelez-nous	-
9	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
10	W10772873		Bolt		Appelez-nous	-
11	W10163273		Drier				$ 93.07
12	W11422769		Overload Relay		Appelez-nous	-
13	W11498144		Spring Tab		Appelez-nous	-
14	W11579581		Cover   (Replaces: W11568820)		Appelez-nous	-
15	W10270517		Clamp, Cord				$ 71.56
16	W11371100		Screw		Appelez-nous	-
17	W11313209		Pcb Box		Appelez-nous	-
18	W11596023		Ptc Thermistor   (Replaces: W11422771)				$ 67.15
19	W11618463		Cord, Power   (Replaces: W11498145)			Immediately	$ 119.22
20	W11266080		Control,electronic   (Replaces: W11265579)		Appelez-nous	-
21	W11422743		Compressor				$ 557.58
22	W11579512		Protector, Motor   (Replaces: W11568812)				$ 41.27
NI	W11512398		Compressor Replacement Service Kit   (Replaces: W11498146)				$ 428.02
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
