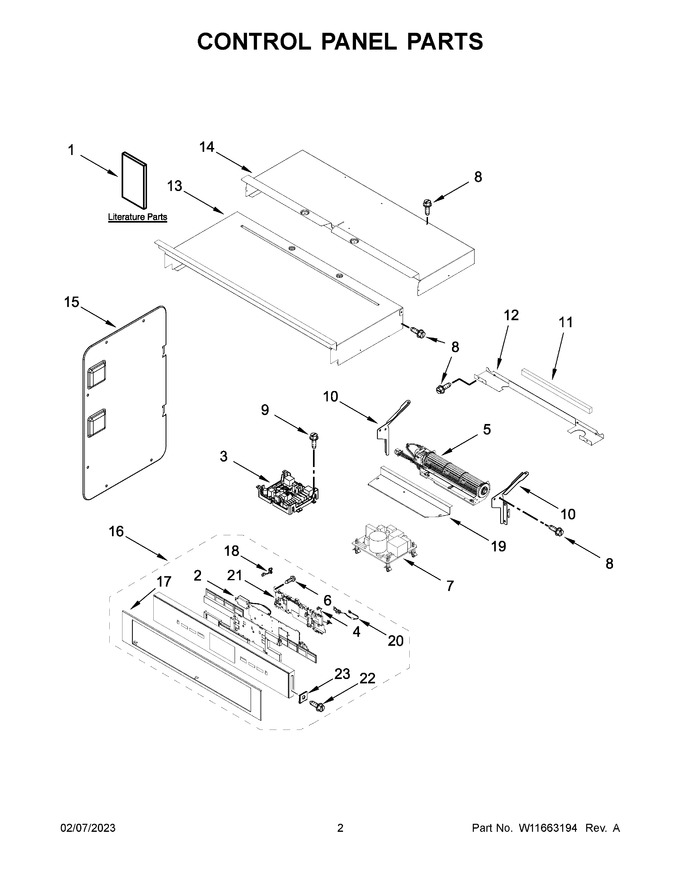

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11499878		Owner's Manual		Appelez-nous	-
2	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
3	W11448962		Appliance Manager, Copernicus   (Replaces: W11249218)			Immediately	$ 347.43
4	W10524350		Harness, Keypad (right To Center)				$ 70.39
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 349.43
6	W10489172		Screw				$ 10.78
7	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 285.62
8	7101P42660		Screw		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318159		Chassis, Cover Top Front 27 In		Appelez-nous	-
14	W11037652		Chassis, Cover Top Back 27 In Wifi		Appelez-nous	-
15	W10655467		Chassis, Combo Side				$ 74.72
16	W11598167		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11195939)				$ 1,563.81
17	W11197499		Skin, Control Panel (stainless)			Immediately	$ 325.60
18	W10566973		Harness, Keypad (left To Center)				$ 73.97
19	W10681157		Cover, Combo Blower		Appelez-nous	-
20	W10575307		Jumper Harness, Power Supply			Immediately	$ 156.46
21	W10668510		Housing				$ 94.65
22	W11602625		Screw (black)   (Replaces: W11339492)				$ 13.25
23	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11423731		Quick Start Guide		Appelez-nous	-
1B	W11399233		Tech Sheet		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 21.12
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 55.62
NI	W11249917		Harness, Signal			Immediately	$ 162.08
NI	W11555167		Harness, Communication				$ 62.95
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 115.01
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 27.22
NI	W11539494		Harness, Inverter				$ 39.05
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 70.99
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 19.27
NI	4450800		Screw, Grounding				$ 12.12
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11659370		Harness, Main				$ 333.32
