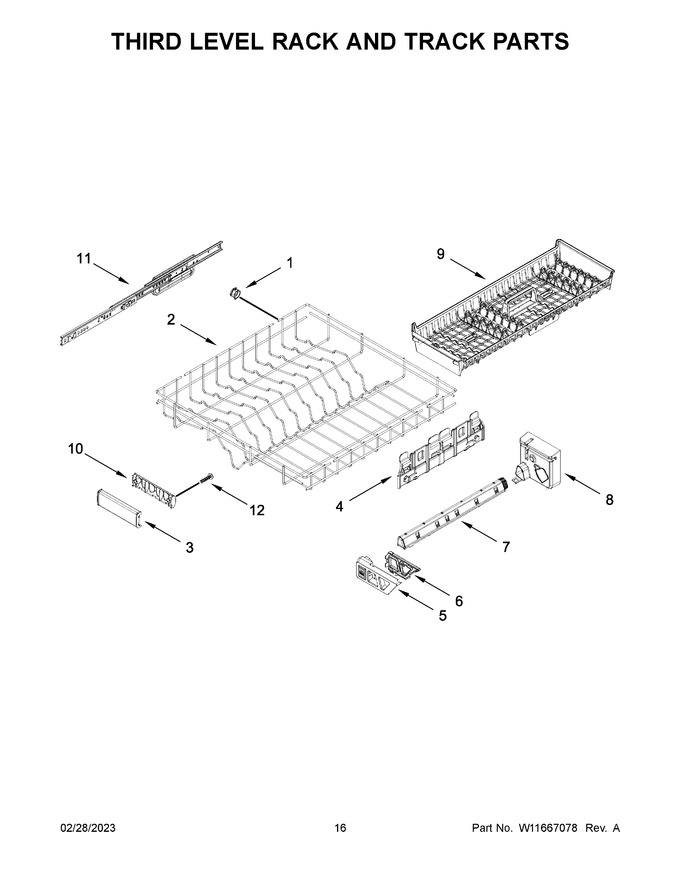

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11545286		Nut, Tub   (Replaces: W10920244)			Immediately	$ 15.39
2	W11127771		Rack, Third Level				$ 143.03
3	W11505218		Handle, Dishrack   (Replaces: W11268684)		Appelez-nous	-
4	W11130709		Mount, Dishrack				$ 68.00
5	W11305291		Manifold, Front		Appelez-nous	-
6	W11193057		Manifold, Rear				$ 29.69
7	W11175552		Tube, Wash				$ 111.11
8	W11175564		Manifold Assembly				$ 69.11
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 61.31
10	W11505221		Handle, Dishrack Rear   (Replaces: W11373129)		Appelez-nous	-
11	W11047813		Track Assembly (left Hand)				$ 163.04
12	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
11A	W11047815		Track Assembly (right Hand)				$ 163.04

    View Diagram in Separate Window       Print Part List
