Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11323304 Owners Manual Appelez-nous -
2 W11766666 Arm, Hinge (left Hand)   (Replaces: W10920232) In-Stock Immediately $ 53.24

3 W11377160 Cross Brace, Door Special Order $ 30.02

4 W11242122 Handle, Pocket (black) In-Stock Immediately $ 199.48

5 W11545318 Access Panel (black)   (Replaces: W11108979) In-Stock Immediately $ 25.11

6 W11672177 Panel, Front (includes 4, 11, 14 & 16) (black)   (Replaces: W11594467) Special Order $ 487.13

7 W11676450 Screw   (Replaces: 3400000) Special Order $ 13.28

8 WPW10309090 Screw   (Replaces: W11364953) In-Stock Immediately $ 69.17

9 W11573704 Insulation, Single Layer   (Replaces: W11038694) In-Stock Immediately $ 26.98

10 W11579528 Toe Panel (black)   (Replaces: W11467733) In-Stock Immediately $ 29.61

11 W10692757 Barrel Nut, Front Panel Special Order $ 14.41

12 W11551775 Screw, Black   (Replaces: W11438978) In-Stock Immediately $ 15.33

13 W11573700 Insulation, Multi-layer   (Replaces: W10919858) In-Stock Immediately $ 40.40

14 W11727444 Screw   (Replaces: W10189731) Appelez-nous -
15 W11778318 Insulation, Front Panel   (Replaces: W10919859) Special Order $ 21.47

16 W11731850 Cover, Console   (Replaces: W11242133) In-Stock Immediately $ 37.24

10A W11467726 Toe Panel (white) Special Order $ 32.19

12A W11632695 Screw, White   (Replaces: W11438977) In-Stock Immediately $ 13.26

1A W11468233 Energy Guide Appelez-nous -
1B W11366143 Tech Sheet Appelez-nous -
2A W11766665 Arm, Hinge (right Hand)   (Replaces: W10920230) In-Stock Immediately $ 53.24

4A W11242123 Handle, Pocket (white) Special Order $ 35.88

5A W11110746 Access Panel (white) Special Order $ 116.96

6A W11672201 Panel, Front (includes 4, 11, 14 & 16) (white)   (Replaces: W11594468) Special Order $ 489.65

6B W11625194 Panel, Front (includes 4, 11, 14 & 16) (stainless)   (Replaces: W11554522) In-Stock Immediately $ 486.04


    View Diagram in Separate Window     Print Icon   Print Part List

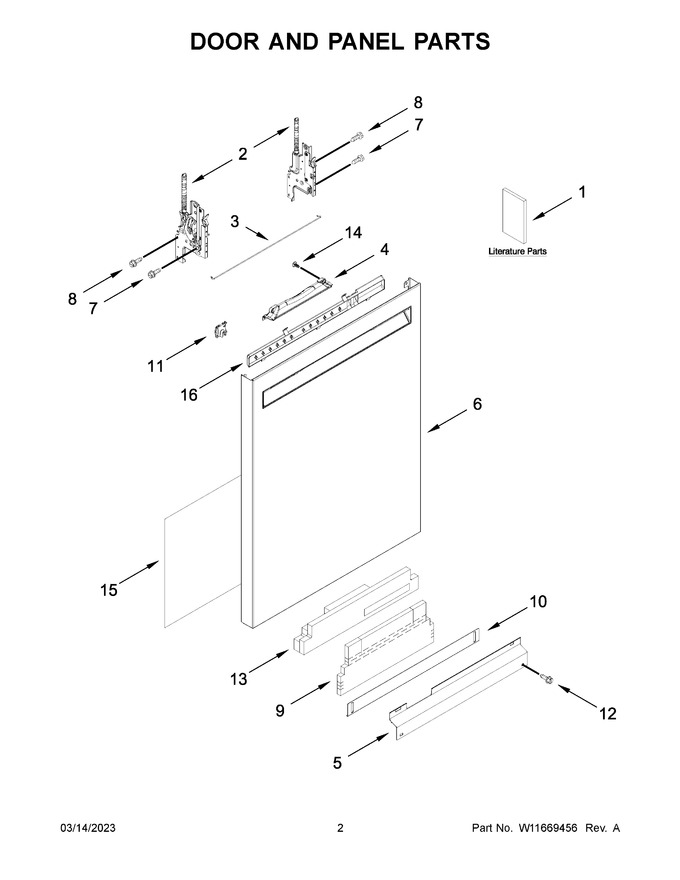

Diagram for KDFE104KPS1
