01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

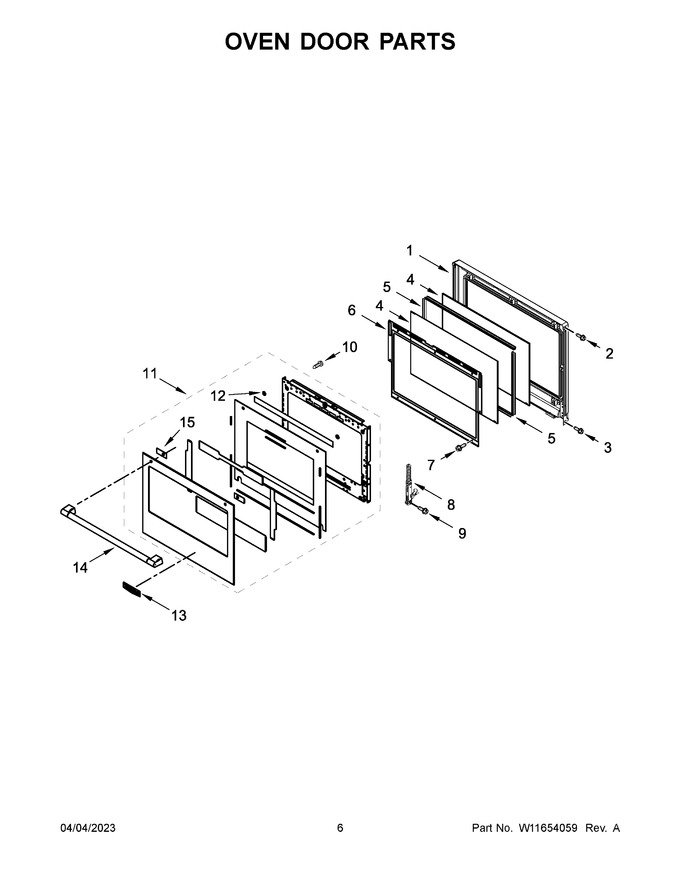

04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598186 | Liner Assembly (Replaces: W11302593) |
|
$ 333.90 | |||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 13.29 | |||||
| 4 | WPW10284902 | Glass, Inner (Replaces: W10618123) |
|
$ 206.83 | |||||
| 5 | W11736672 | Spacer, Air Divider (Replaces: W11302731) |
|
Immediately | $ 48.65 | ||||
| 6 | W11598188 | Retainer, Air Divider Glass (Replaces: W11204277) |
|
$ 73.66 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11617222 | Hinge, Door (left) (Replaces: W11296054) |
|
$ 81.03 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | ||||
| 11 | W11659274 | Door Assembly (stainless) (Replaces: W11470090) |
|
$ 469.12 | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 13 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 38.16 | ||||
| 14 | W11658446 | Handle Assembly (stainless) (Replaces: W11496834) |
|
- | |||||
| 15 | W10650497 | Spacer, Handle |
|
- | |||||
| 8A | W11617231 | Hinge, Door (right) (Replaces: W11296055) |
|
$ 81.03 |
