SELECT A DIAGRAM
01 - Cover Sheet

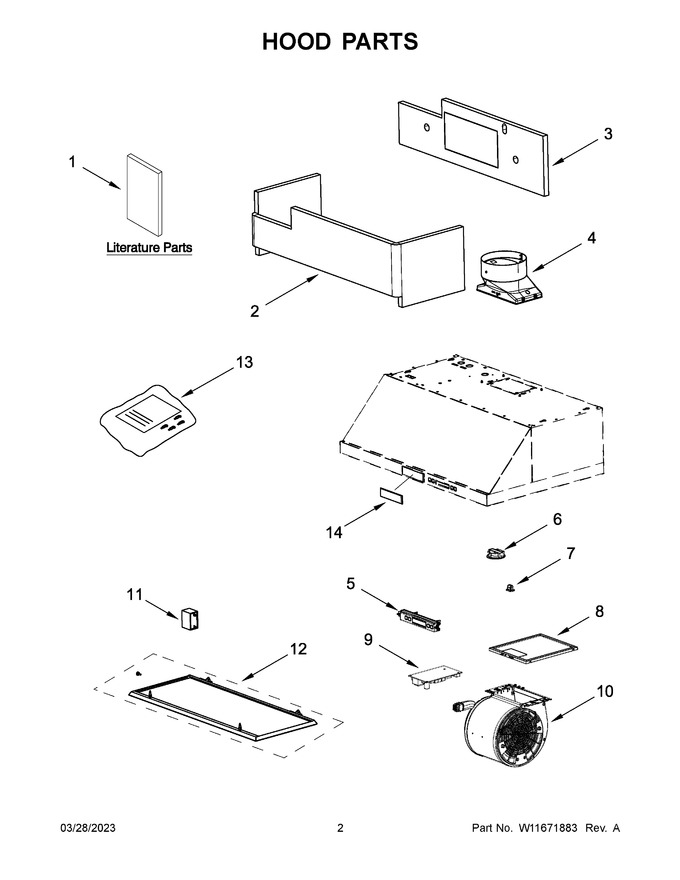

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10674120 | Use And Care Guide |
|
- | |||||
| 2 | W11688383 | Insulation (30" Model Only) (Replaces: W10735393) |
|
$ 116.40 | |||||
| 3 | W11688384 | Insulation, Back (30" Model Only) (Replaces: W10735394) |
|
$ 113.42 | |||||
| 4 | W11516461 | Damper (Replaces: W11512452) |
|
Immediately | $ 108.93 | ||||
| 5 | W11671895 | Control, Electronic (Replaces: W11671538) |
|
$ 346.48 | |||||
| 6 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 7 | W10854245 | Clip, Panel (Replaces: W10735735) |
|
Immediately | $ 68.03 | ||||
| 8 | W10915369 | Filter, Grease (Replaces: W10727013) |
|
Immediately | $ 39.73 | ||||
| 9 | W11613025 | Board, Power (Replaces: W11671877) |
|
$ 332.58 | |||||
| 10 | W11035826 | Blower, Fan (Replaces: W10727058) |
|
Immediately | $ 388.39 | ||||
| 11 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 | ||||
| 12 | W10735352 | Panel, Perimetric (30" Model Only) |
|
$ 199.36 | |||||
| 13 | W11281881 | Hardware, Installation |
|
$ 118.43 | |||||
| 14 | W10909682 | Nameplate (Replaces: W10518673) |
|
Immediately | $ 68.58 | ||||
| 12A | W10735373 | Panel, Perimetric (36" Model Only) |
|
$ 207.52 | |||||
| 2A | W10735396 | Insulation (36" Model Only) |
|
- | |||||
| 3A | W11684913 | Insulation, Back (36" Model Only) (Replaces: W10735397) |
|
- |
