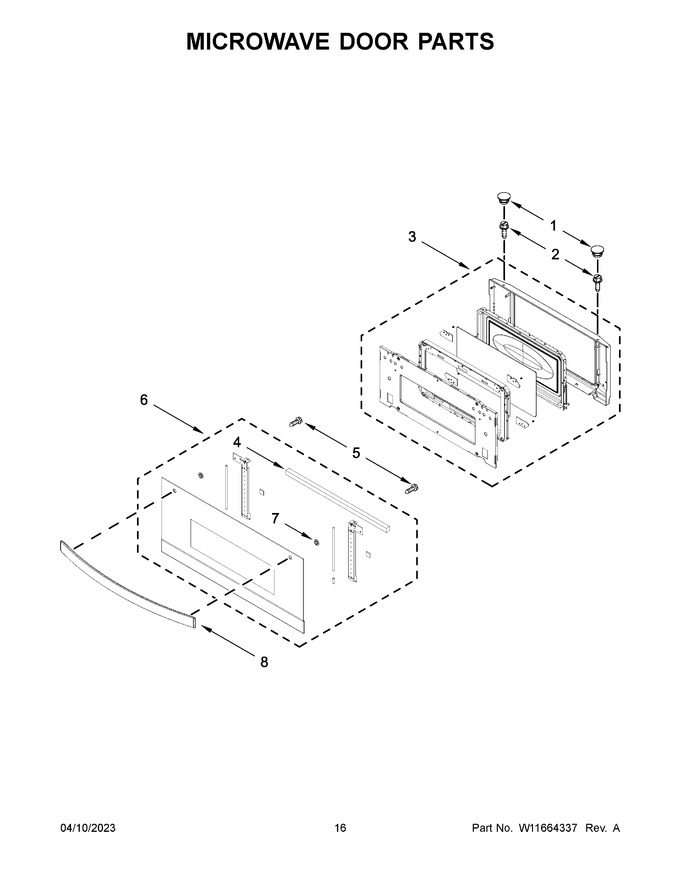

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.11
2	7101P33860		Screw		Appelez-nous	-
3	W11639552		Inner Door Assembly   (Replaces: W11328749)				$ 535.73
4	W10359769		Foam, Door Handle				$ 13.28
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 13.28
6	W11654093		Door Assembly (black)   (Replaces: W11500265)		Appelez-nous	-
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
8	W11648761		Handle, Door (black)   (Replaces: W11548016)				$ 86.12
6A	W11654094		Door Assembly (white)   (Replaces: W11500268)		Appelez-nous	-
6B	W11654092		Door Assembly (stainless)   (Replaces: W11500266)				$ 429.13
8A	W11675412		Handle, Door (white)   (Replaces: W11660150)				$ 91.12
8B	W11648757		Handle, Door (stainless)   (Replaces: W11532601)		Appelez-nous	-
